HEREXI Medical Automatic Centrifuge Machine Uncapped Room Temperature

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: DD5M

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 34000¥

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

HEREXI Automatic Centrifuge Machine

,

Medical Automatic Centrifuge Machine

,

Uncapped Medical Centrifuge Machine

The Name Of The:
Automatic Dehatted Medical Centrifuge DD5M
Highest Speed:
4000min
Maximum Relative Centrifugal Force:
3420xg
Number Of Blood Vessels:
124、148
The Weight Of The:
75kg
The Program:
20
Timing Range:
1min-99h59min
Overall Dimensions:
710×560×770mm
The Name Of The:
Automatic Dehatted Medical Centrifuge DD5M
Highest Speed:
4000min
Maximum Relative Centrifugal Force:
3420xg
Number Of Blood Vessels:
124、148
The Weight Of The:
75kg
The Program:
20
Timing Range:
1min-99h59min
Overall Dimensions:
710×560×770mm

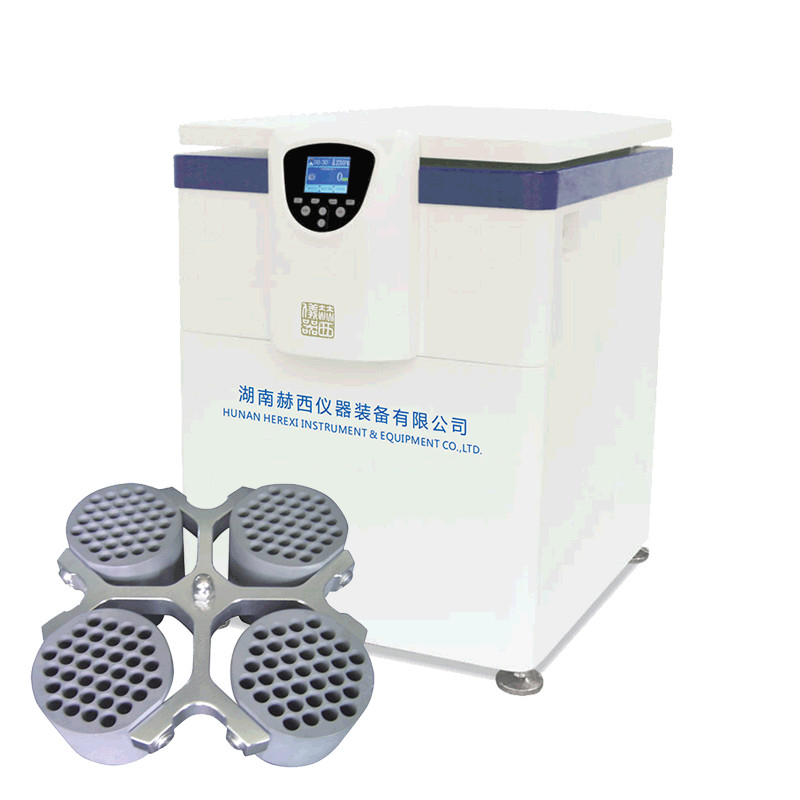

HEREXI Medical Automatic Centrifuge Machine Uncapped Room Temperature

HEREXI Automatic Dehatted Medical Centrifuge DD5M |Uncapped Centrifuge At Room Temperature

This product is specially designed for the hospital, blood station, exemption, nuclear medicine and other units. It automatically takes off hats and centrifuges to completely solve the problem of hospital removing hats in the separation of vacuum blood vessels. It is a novel, advanced and efficient separation equipment today.

Automatic off-cap centrifuge is a conventional medical centrifuge. Automatic off-cap centrifuge is also known as automatic off-cover centrifuge. It is the conventional hospital laboratory centrifugal machine to automatically remove the vacuum blood vessel cover during the centrifuge process.Designed for the hospital, blood station, exemption, nuclear medicine and other units, it was automatically removed and centrifuged once, and completely solved the problems of low artificial cap removal efficiency in the process of separating vacuum blood vessel extraction and low vibration caused by blood resuspension to increase the risk of bacterial infection.

There are 48,78,128 and 148 specifications to meet different separation requirements; another room temperature and freezing models to meet the experimental requirements.



DD5M Features of Automatic Hded Medical Centrifuge:

1. Vacuum extraction automatic cap centrifuge, success rate of 97%, suitable for vacuum m / 75mm 100mm specifications.
2. Adopt Ingram single chip machine and Infineon drive module, cooperate with independent research and development of control board and large torque AC / DC frequency conversion motor, to operate stable and low noise and provide a comfortable laboratory environment.
3. Adopt fluorine-free refrigeration compressor set and environmentally friendly refrigerant R404a, with a wide temperature control range: -20℃ 40℃, and can be set during centrifuge operation; prefabricated cooling function, rapid cooling to setting temperature; standby cooling function, maintaining set temperature in standby state, and heating frost function.(TL5R is applicable only)
4. It has various early warning functions, including overspeed, overtemperature, imbalance, underpressure and excessive pressure, three-level damping shock absorption, special combination shock absorption device, to make the motor smooth operation safe and reliable, prevent blood resuspension, and achieve excellent centrifugal effect.
5.TFT-LCD real color display, touch screen button and physical button double operation mode, with centrifugal force display special keys, display set parameters and operation parameters, can change parameters at any time during operation, no shutdown, operation interface intuitive, simple, easy to use; operation menu can provide multiple languages (Chinese, English, Russian and Portuguese).
6. The rear Austenitic 304 stainless steel centrifugal chamber is combined with all-steel spray molding shell, one stamping molding steel front face and three-layer steel protective cover and other security devices, which are not only strong and durable, but also ensure the safety of staff and laboratory use.
7. Automatic off-off medical centrifuge DD5M, using silent electromechanical motor door lock, easy to use, just gently close the door cover, which will trigger the door lock system, lock the door cover safely.
8.10 gear acceleration and 10 gear deceleration speed control can store 20 sets of user custom programs, modify the control parameters of the running rotor at any time, and display the speed lifting curve, centrifugal integral curve and temperature curve.
9. The chassis has casters and casters adjustment blocks to facilitate equipment movement and horizontal adjustment (DD5M / TL5R only); 100V-230V wide voltage design to improve the voltage adaptation range of centrifuges (TD5 / DD5 only).
10. Have the CFDA filing and CFDA production qualification, and have passed the ISO 9001 (2015) certification and ISO 13485 (2016) certification.

Host technical parameters
product model DD5M (off-cap centrifuge)
Number of collected blood vessels were isolated 124 / 148 branches
Maximum rotational speed (r / min) 4000 r/min
Maximum centrifugation force (g) 3420×g
Speed accuracy ± 50 r/min (customizable to demand, multiple of 10)
Control and drive system Large torque straight / AC frequency conversion motor, microcomputer control
action routine Twenty
Time range 1-99h59min
source AC220V 50Hz
noise ≤65 dB
aggregate capacity 1.0Kw
Overall dimensions (long, width and height) 710×560×770 mm
weight 75 Kg
