Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: LRM-12L
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 220000¥
Packaging Details: 860×960×1200mm
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |

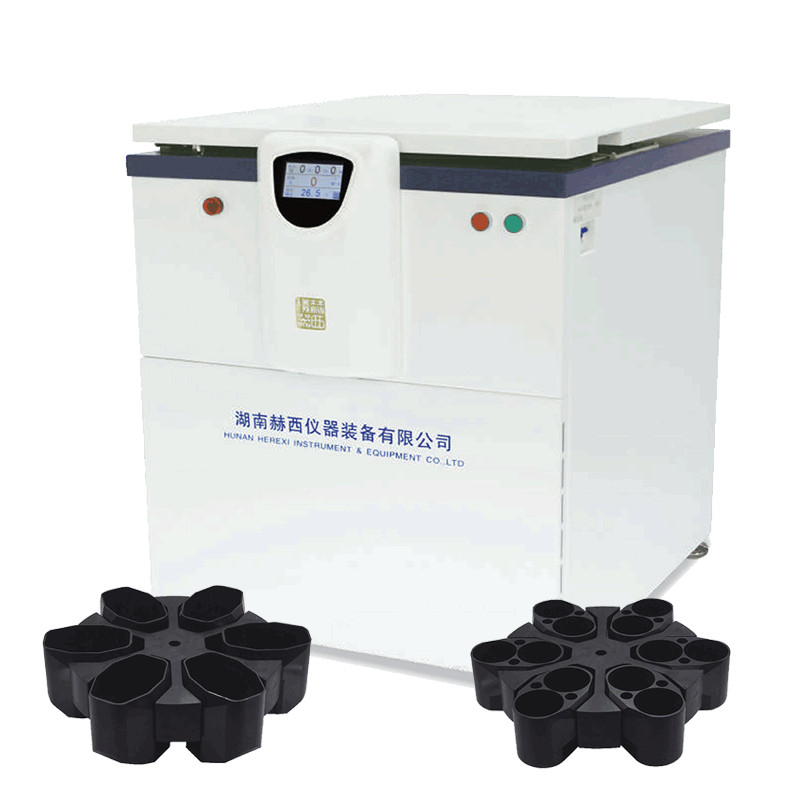

LRM-12L Super Capacity Refrigerated Centrifuge |
Rotor Capacity: |
6×2400 Ml |
Highest Speed: |
4000min |
Aximum Relative Centrifugal Force: |
5680×g |
Operating Temperature: |
-20℃~+40℃ |
Program: |
16 |
Timing Range: |
1min-99h59min |
Weight Of The: |
450kg |
The Name Of The: |
LRM-12L Super Capacity Refrigerated Centrifuge |
Rotor Capacity: |
6×2400 Ml |
Highest Speed: |
4000min |
Aximum Relative Centrifugal Force: |
5680×g |
Operating Temperature: |
-20℃~+40℃ |
Program: |
16 |
Timing Range: |
1min-99h59min |
Weight Of The: |
450kg |
Application field of super-large capacity frozen centrifuge:
The capacity was 62,400mL, with disposable separable 18 bags of 200mL whole blood or 12 bags of 400 m L blood bags.It is mainly used in the fields of biochemistry, medical and health care, food safety, life science, agriculture and forestry science, animal husbandry science, blood bank, blood station, biological products, drug products and other fields of ideal equipment. It is a high-tech inspirational to replace import instruments and export a large number of products.
Lrm-12l is widely used in medical treatment (such as hospitals, CENTERS for Disease control and prevention, blood centers, animal husbandry and aquatic products, radiation immunity); Research (institutions of higher learning, research institutes, R&D centers, laboratories); Production (such as: biological engineering, biopharmaceutical, genetic engineering, biochemistry, plant extraction, blood preparation, food processing, petrochemical, milk fat separation) and other fields.
Characteristics of the LRM-12L super-large capacity frozen centrifuge:
1. Use Mitsubishi PLC (in accordance with EEC 2014 / 30 / EU and IEC_61131-2-2007) and Weilong touch screen (in accordance with NEMA4 protection regulations and EU CE electrical certification standards), with independently developed control board and large torque AC frequency conversion motor to operate stable noise and provide a comfortable laboratory environment.
2. Adopt fluorine-free refrigeration compressor set and environmentally friendly refrigerant R404a, with a wide temperature control range: -20℃ - + 40℃, and can be set during centrifuge operation; prefabricated cooling function, rapid cooling to setting temperature; standby cooling function, can maintain set temperature in standby state, and heating frost function.
3.LRM-12L large capacity frozen centrifuge, with various early warning functions of overspeed, overtemperature, imbalance, underpressure, excessive pressure, tertiary damping shock absorption, special combined shock absorption device, make the motor smooth operation safe and reliable, prevent sample resuspension, and achieve excellent centrifugal effect.
4.TFT-LCD real color display, touch control mode, display setting parameters and operation parameters, operation interface is intuitive, simple and easy to use; operation menu can be provided in multinational language version (Chinese and English).
5. The rear Austenitic 304 stainless steel centrifugal chamber is combined with all-steel spray molding shell, one stamping molding steel front face and three-layer steel protective cover and other security devices, which are not only strong and durable, but also ensure the safety of staff and laboratory use.
6. The hood took the lead in using carbon fiber material, first-class strength and details, the overall weight is light and reliable, has applied for the national patent.
7. Use the mechanical door lock, easy to operate and adapt to various harsh environments. Only gently close the door cover, which will trigger the door lock system and lock the door cover safely.
8.10 gear acceleration and 10 deceleration speed control can store 16 sets of user custom programs, modify the control parameters of the running rotor at any time, and display the speed lifting curve, centrifugal integral curve and temperature curve.
9.LRM-12L super-large capacity frozen centrifuge, chassis with casters and carbon steel casters adjustment block, to facilitate the movement and horizontal adjustment of the centrifuges.
10. Have the CFDA filing and CFDA production qualification, and have passed the ISO 9001 (2015) certification and ISO 13485 (2016) certification.
Host technical parameters:
model | LRM-12L |
max. cap | 6×2400 ml |
Maximum rotational speed (r/min) | 4200 |
Maximum centrifugation force (g) | 5680 |
Speed accuracy | ± 50 r/min (customizable to demand, multiple of 10) |
Control and drive system | AC frequency conversion motor, microcomputer control |
compression engine | Compressor set, fluorine-free refrigerant R404a |
action routine | 16 |
Temperature control scope | -20℃~+40℃ |
Temperature control accuracy | ±1℃ |
Time range | 1-99h59min |
aggregate capacity | 6.0KW |
source | AC220V 50Hz |
noise | <65dB(A) |
outline dimension (Long, width and height) |
860×960×1200 mm |
weight | 450 Kg |
The rotor parameters
The rotor name | capacity | maximum speed | centrifugal force |
Horizontal rotor | 6×2×1000 ml | 4200 | 5680 |
6×2400 ml | 4000 | 5653 |
