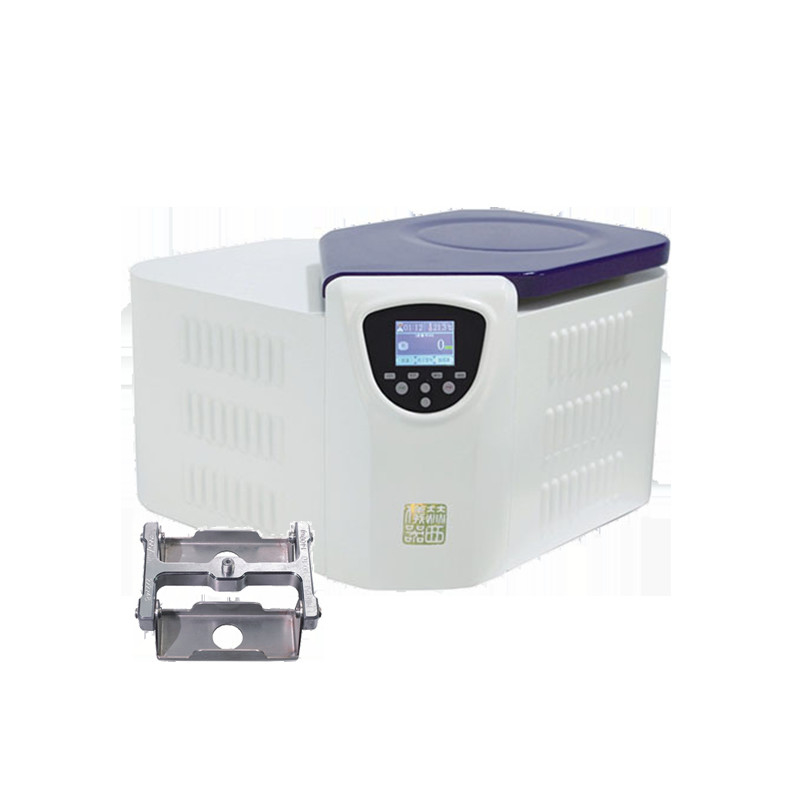

R404a Refrigerated Tabletop Centrifuge High Speed intelligent for Laboratory

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: 3H12RI

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 30000¥

Packaging Details: 710×630×350mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

R404a Refrigerated Tabletop Centrifuge

,

High Speed Refrigerated Tabletop Centrifuge

,

Refrigerated Table Top Centrifuge

The Name Of The:
3H12RI Intelligent High Speed Refrigerated Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
12000min
Aximum Relative Centrifugal Force:
21370×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
75kg
The Name Of The:
3H12RI Intelligent High Speed Refrigerated Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
12000min
Aximum Relative Centrifugal Force:
21370×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
75kg
R404a Refrigerated Tabletop Centrifuge High Speed intelligent for Laboratory

High Speed Refrigerated Centrifuge 3H12RI Laboratory High Speed Refrigerated Test Centrifuge

HEREXI mainly produces high speed refrigerated centrifuge, super capacity refrigerated centrifuge, low speed refrigerated centrifuge, normal temperature centrifuge, crude oil moisture measurement centrifuge, vacuum centrifuge concentrator, 3H series intelligent centrifuge and latex moisture fast measuring instrument, and takes the lead in the industry through ISO13485: 2016 Medical device Quality management system certification, ISO9001:2015 quality management system certification and CE certification.



The 3H series can be selected with a variety of Angle rotors and horizontal rotors, up to 100 sets of custom programs, with excellent multi-purpose characteristics, is the classic product of Hussey instrument centrifuge. Application: fine bacteria, protein precipitation, nucleic acid extraction, cell/subcellular component separation, environmental sample processing.

In 2010, it won the "Independent Innovation Silver Award" issued by China Instrument industry Association.





3H12RI intelligent desktop high speed refrigerated centrifuge



1. Adopt single chip microcomputer and infineon drive module, with independent research and development control board and large torque AC/DC brushless motor, stable operation and low noise, provide a comfortable laboratory environment.



2. Using non-fluorine refrigeration compressor unit and environmental protection refrigerant R404a, with a wide range of temperature control: -20℃ -40 ℃, and can be set during the operation of the centrifuge; With pre-cooling function, can quickly cool down to the set temperature; With standby cooling function, can maintain the set temperature in standby state; With heating and defrosting function.



3.3H12RI intelligent desktop refrigerated high-speed centrifuge, with overspeed, overtemperature, imbalance, undervoltage, overvoltage and other early warning functions, three-level damping shock absorption, special combination of shock absorption device, so that the motor stable operation of safe and reliable, to prevent sample suspension, to achieve excellent centrifugal effect.



4. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, without stopping, the operation interface is intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).



5. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.



6. Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.



7. Exquisite industrial appearance design, diamond shape novel and beautiful, more suitable for the corner, save the laboratory limited table space.



10. Adopt mute electromechanical motor door lock, easy to use, just close the door cover gently, it will trigger the door lock system, the door cover is locked safely.



11.10 speed up and 10 speed down control, can store 100 groups of user defined programs, convenient to call common programs, boot for the last used program.



12. Multi-specification aero-forged aluminum rotor (Angle rotor only) and polyamide fiber adapter are optional, suitable for 0.2ml to 100mL centrifuge tube or reagent bottle; Can centrifugal all kinds of MTP microporous plate, PCR plate, cell culture plate.



13. Have the CFDA record and CFDA production qualification, passed the ISO 9001 (2015) certification and ISO 13485 (2016) certification.



Technical Parameters
Product Model 3H12RI
Max Capacity 6×50 ml
Max Speed(r/ min) 12000
Max Rcf((×g) 12290
Default rotor 24×1.5/2.0 ml
Speed Accuracy ±50r/min
Cooling System Fluorine-free refrigeration compressor unit and control valve(R404a)
Temperature setting Range -20℃~40℃
Temperature Accuracy ±1℃
Running program 20
power 1.5 Kw
Time Range 1-99h59min
Rotor recognition auto
Noise Level ≤60 dB
Power supply AV220V 50Hz
weight 75 Kg
Size(L×W×H) 710×630×350 mm



Rotor Spec:

Product NAME Capacity 3H12 RI
Speed RCF
Angle rotor 12×1.5/2.0ml 12000 9930
24×1.5/2.0ml 11500 12290
10×5ml 12000 9930
8×7ml 12000 12271
12×10ml/5ml 11000 11612
12×10ml through -hole 6000 3740
6×50ml through -hole 6000 3670
6×50ml round bottom 10000 9600
6×50ml conical bottom 10000 10500
Swing rotor 4×50ml 4000 2360
4×100ml 4000 2490
Swing micro-plate rotor 2×2×48 Hole 3000 1120
