Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: HR/T20M
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 40200¥
Packaging Details: 710×630×350mm
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |
HR/T20M Table Top High Speed Refrigerated Centrifuge |
Rotor Capacity: |
6×50ml |
Highest Speed: |
20000min |
Aximum Relative Centrifugal Force: |
27600×g |
Operating Temperature: |
-20℃~+40℃ |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
73kg |
The Name Of The: |
HR/T20M Table Top High Speed Refrigerated Centrifuge |
Rotor Capacity: |
6×50ml |
Highest Speed: |
20000min |
Aximum Relative Centrifugal Force: |
27600×g |
Operating Temperature: |
-20℃~+40℃ |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
73kg |
Hunan Hesi Instrument equipment Co., Ltd. is a professional high-tech company integrating research, production and sales of refrigerated centrifuges, medical centrifuges, vacuum centrifuges, high speed centrifuges, low speed centrifuges, large capacity centrifuges, moisture meter and other laboratory instruments and equipment. And through ISO9001 quality system certification and CE certification, as well as ISO13485 quality system certification, centrifuge reasonable price exquisite design, novel shape, used in colleges and universities, scientific research units, biopharmaceutical, medical, petrochemical and other fields, "high-speed refrigerated centrifuge technical conditions" drafter
A centrifuge is a machine that uses centrifugal force to accelerate the separation of different materials. Refrigerated centrifuge is divided into low speed, high speed refrigerated centrifuge, as well as overspeed analysis, preparation of dual-use refrigerated centrifuge and other models.
Ideal for low budget high speed refrigerated centrifuges. It is an ideal equipment for bacteria, protein precipitation, nucleic acid extraction, cell/subcellular component separation, environmental sample handling, clinical sample processing in the fields of biochemistry, medical and health, food safety, life science, agriculture and forestry, animal husbandry science, blood bank, blood bank, biological products, pharmaceutical products and so on.

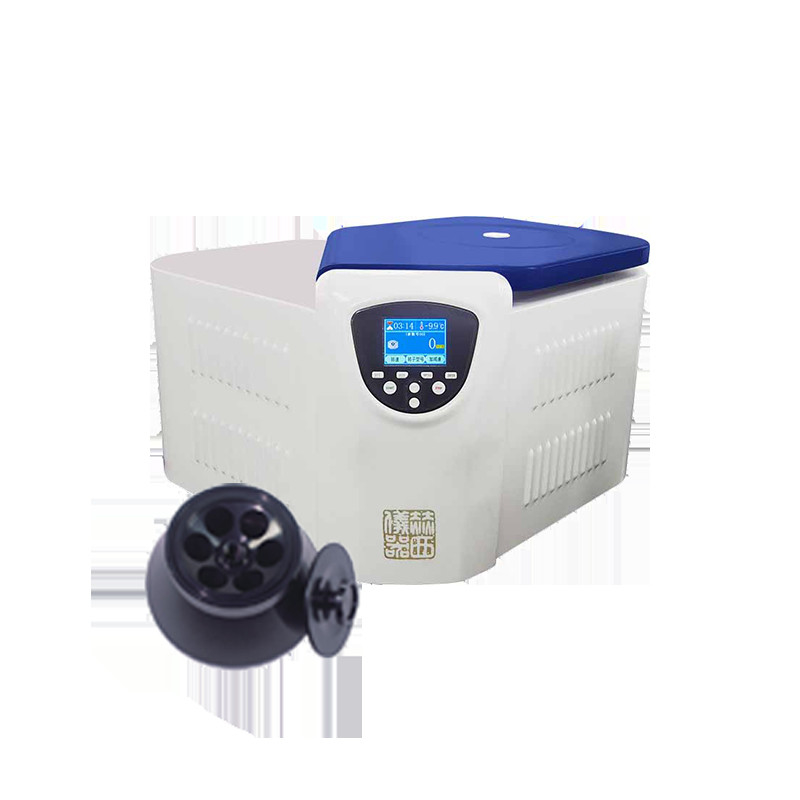

HR/T20M table top high speed refrigerated centrifuge
1. Adopt single chip microcomputer and infineon drive module, with independently developed control board and large torque AC/DC brushless frequency conversion motor, stable operation and low noise, providing a comfortable laboratory environment.
2.HR/T16M table top high speed refrigerated centrifuge adopts non-fluorine refrigeration compressor unit and environmental protection refrigerant R404a, with a wide range of temperature control: -20℃ -40 ℃, and can be set during the centrifuge operation; With pre-cooling function, can quickly cool down to the set temperature; With standby cooling function, can maintain the set temperature in standby state.
3. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other warning functions, special combination of shock absorption device, make the motor stable operation, safe and reliable, to prevent the sample suspension, to achieve excellent centrifugal effect.
4. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, without stopping, the operation interface is intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
5. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.
6. Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.
7. Extremely delicate industrial appearance design, diamond shape novel and beautiful, more suitable for corner placement, saving laboratory limited table space.
8.HR/T20M desktop high speed refrigerated centrifuge adopts mute electromechanical motor lock, easy to use, just close the door cover gently, the door lock system will be triggered, the door cover will be locked safely.
9.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, boot for the last used program.
10. Multi-specification aviation forged aluminum rotor (Angle rotor only) and multiple polyamide fiber adapters are optional, which can centrifugal all kinds of MTP microporous plate, PCR plate, cell culture plate and deep hole plate.
11. Have CFDA record and CFDA production qualification, passed ISO 9001 (2015) and ISO 13485 (2016) certification.
Host technical parameters | |
product model | HR/T20M |
max. cap | 6×50ml |
Maximum rotational speed (r/min) | 20000 |
Maximum centrifugation force (g) | 27600 |
Speed accuracy | ± 50 r/min (customizable to demand, multiple of 10) |
refrigeration system | Fluoride-free refrigeration compressor unit (R404a) |
Temperature control range | -20℃~+40℃ |
Temperature control accuracy | ±1℃ |
Timed range | 1-99h59min |
Noise, sound | ≤60 dB |
aggregate capacity | 1.5 Kw |
Electricity, source | AC220V 50Hz |
Heavy, quantity | 73 Kg |
Overall dimension (long, width and height) | 710×630×350 mm |
Rotor parameters:
product name | HR/T20M | ||
capacity | Speed Speed (r / min) | centrifugal force (×g) | |
Angle rotor | 12×1.5/2.0 ml | 20000 | 27600 |
24×1.5/2.0 ml | 15000 | 21370 | |
10×5 ml | 16000 | 17660 | |
12×10 ml/5 ml | 12000 | 13820 | |
12×10 ml | 6000 | 3740 | |
6×50 ml | 12000 | 15120 | |
6×50 ml | 12000 | 13820 | |
6×50 ml | 6000 | 3670 |
