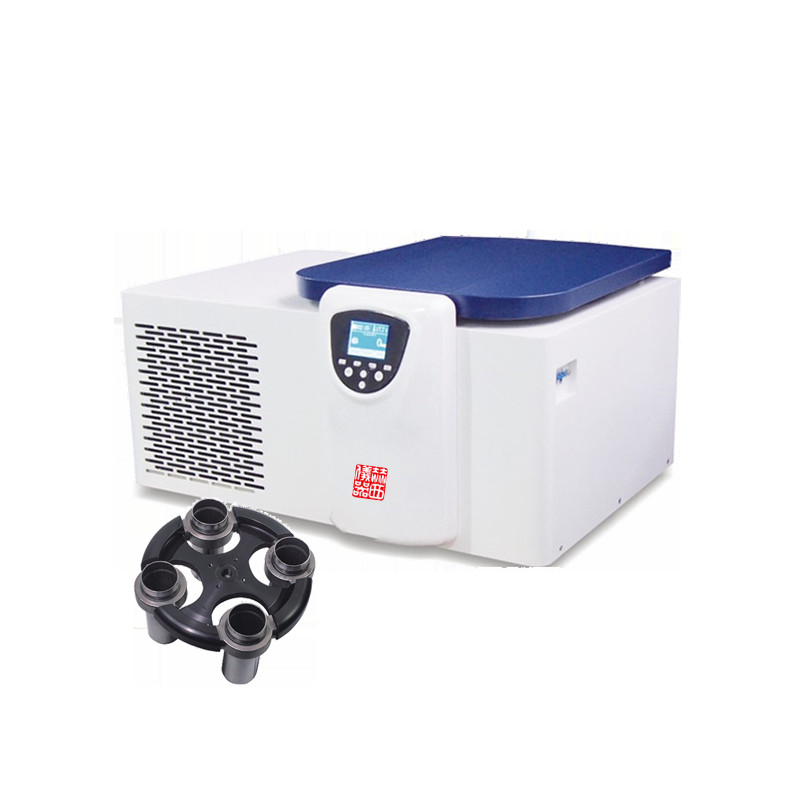

AC220V 50Hz 1.8KW Table Top Centrifuge Machine Refrigerated Large Capacity Centrifuge

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: TDL5M

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 41800¥

Packaging Details: 630×760×400mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
High Light:

AC220V Table Top Centrifuge Machine

,

1.8KW Table Top Centrifuge Machine

,

Refrigerated Large Capacity Centrifuge

The Name Of The:
TDL5M Table Top Low Speed Large Capacity Refrigerated Centrifuge
Rotor Capacity:
4×500ml
Highest Speed:
5500min
Aximum Relative Centrifugal Force:
4800×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
110kg
The Name Of The:
TDL5M Table Top Low Speed Large Capacity Refrigerated Centrifuge
Rotor Capacity:
4×500ml
Highest Speed:
5500min
Aximum Relative Centrifugal Force:
4800×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
110kg
AC220V 50Hz 1.8KW Table Top Centrifuge Machine Refrigerated Large Capacity Centrifuge

TDL5M Table Top Low Speed And Large Capacity Refrigerated Centrifuge Table Top Large Capacity Refrigerated Centrifuge

Hunan Hexi Instrument Equipment Co., Ltd. was established in Xiangjiang New Area in 2007. After more than ten years of development, it has become a high-tech enterprise integrating r&d, production and sales of laboratory instruments and equipment with independent intellectual property rights, independent brand and independent innovation ability.



Low speed refrigerated centrifuge, room temperature/temperature control/capacity and other options, complete models, according to the needs of different experimental requirements, low speed refrigerated centrifuge, suitable for biological companies, hospitals, universities and other scenes, reliable quality



Ideal for low - speed high - flux desktop applications, with unusual multi - function. Widely used in biology, chemistry, medicine, agriculture and forestry, food safety, blood stations, clinical trials and other fields of experiment and scientific research work.



TDL5M table top large capacity low speed refrigerated centrifuge features:



1. Adopt single chip microcomputer and infineon drive module, with independent research and development control board and large torque AC brushless motor, stable operation and low noise, to provide a comfortable laboratory environment.



2. Using non-fluorine refrigeration compressor unit and environmental protection refrigerant R404a, with a wide range of temperature control: -20℃-±40℃, and can be set during the operation of the centrifuge; With pre-cooling function, can quickly cool down to the set temperature; With standby cooling function, can maintain the set temperature in standby state; With heating and defrosting function.



3. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other early warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.



4.TDL5M frozen desktop low-speed centrifuge adopts tfT-LCD true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, can be changed at any time during operation, without stopping, the operation interface is intuitive, simple, convenient to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).



5. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.



6. Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.



7.TDL5M desktop low speed refrigerated centrifuge adopts mute electromechanical motor lock, easy to use, just close the door cover gently, the door lock system will be triggered, and the door cover will be locked safely.



8.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, boot for the last used program.



9. Aero forged aluminum rotor (Angle rotor only) and various polyamide fiber adapters are optional, which can centrifugal all kinds of MTP microporous plates, PCR plates, cell culture plates and deep hole plates.



10. Have CFDA record and CFDA production qualification, passed ISO 9001 (2015) certification and ISO 13485 (2016) certification.



Technical Parameters
Product Name TDL5M
Max Speed(r/ min) 5500
Max Rcf(×g) 4800
Max Capacity 4×300 ml
Timer 1-99h59min/Series/Short-time centrifugation
Noise ≤60 dB
Power supply AC220V 50Hz
Temperature control range -20℃~+40℃
Temperature accuracy ±1℃
Refrigerated system Fluorine-free refrigeration compressor unit
Run program 20
Speed accuracy ±50r/min
Control and drive system high-torque DC brushless motor, microcomputer control
Power 1.8KW
Net Weight 110 Kg
Size(L×W×H) 630×760×400 mm



Matched Rotor Parameter:



Product Name TDL5M
Capacity Max Speed(r/ min) Max Rcf(×g)
Angle Rotor 12×10 ml/15ml 5500 3140
Swing rotor

48×5 ml

(Normal tube)

4000 2960

48×5 ml/2 ml

(Vacuum tube)

4000 2960

76×5 ml/2 ml

(Vacuum tube)

4000 3080
24×10 ml/15ml 5000 4620
32×10 ml/15ml 4000 2960
4×50 ml 5000 4600
8×50 ml 4000 2960
4×100 ml 5000 4800

4×250 ml

(round bottom)

4000 2780
Horizontal microplate rotor 2×2×96 holes 4000 2360
