Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: DD5M
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 20300¥
Packaging Details: 740×620×900mm
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |
DD5M Vertical Large Capacity At Low Speed Centrifuge |
Rotor Capacity: |
6×500ml |
Highest Speed: |
5000min |
Aximum Relative Centrifugal Force: |
4800×g |
Operating Temperature: |
The Normal Temperature(Optional Refrigeration) |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
85kg/180kg |
The Name Of The: |
DD5M Vertical Large Capacity At Low Speed Centrifuge |
Rotor Capacity: |
6×500ml |
Highest Speed: |
5000min |
Aximum Relative Centrifugal Force: |
4800×g |
Operating Temperature: |
The Normal Temperature(Optional Refrigeration) |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
85kg/180kg |
HEREXI company, specializing in medical centrifuges for 15 years, is suitable for the centrifuge of a large number of sample solutions, reduce startup time, improve efficiency, HEREXI export centrifuge has excellent temperature control performance, fast refrigeration, is the ideal choice for cell separation
Large-capacity centrifuges just as its name implies is its capacity is larger than the ordinary centrifuge, the main difference lies in the capacity of a single rotor or the total capacity is large, it's technology of centrifuge and rotor with higher requirements, general large capacity centrifuge is low speed, but the centrifuge technology mature gradually, also has a large capacity high-speed centrifuge.

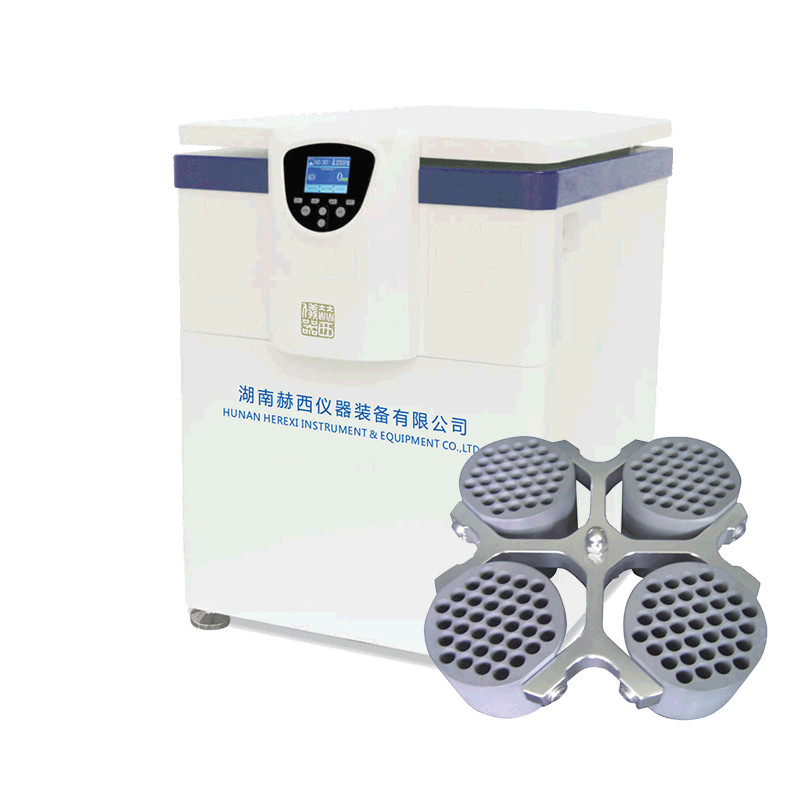

DD5M vertical low speed and large capacity centrifuge
DD5M vertical low-speed and large-capacity centrifuge, using Single chip microcomputer and infineon drive module, with independent research and development of the control board and large torque AC frequency conversion motor, stable operation, low noise, to provide a comfortable laboratory environment.
2. Imported non-fluorine refrigeration compressor unit and environmental protection refrigerant R404a, with a wide range of temperature control: -20℃-+40℃, and can be set during the operation of the centrifuge; With pre-cooling function, can quickly cool down to the set temperature; With standby cooling function, can maintain the set temperature in standby state; With heating and defrosting function.
DD5M large capacity vertical low speed centrifuge (also known as floor type low speed centrifuge) with overspeed, overtemperature, imbalance, under pressure, over pressure and other warning functions, three stage damping damping, special combination of damping device, make the motor stable operation safe and reliable, to prevent the sample suspension, to achieve excellent centrifugal effect.
4. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, without stopping, the operation interface is intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
5. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.
6.DD5M vertical low-speed and large-capacity centrifuge, rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.
7. Adopt mute electromechanical motor door lock, easy to use, just close the door cover gently, it will trigger the door lock system, the door cover is locked safely.
8.10-speed acceleration and 10-speed deceleration rate control, can store 20 groups of user defined programs, can modify the control parameters of the running rotor at any time.
9. The chassis has casters and carbon steel casters adjustment block, convenient centrifuge movement and level adjustment.
10. Have CFDA record and CFDA production qualification, passed ISO 9001 (2015) certification and ISO 13485 (2016) certification.
Technical Parameters:
Product Model | DD5M | |||
Max Capacity | 6×500 ml | |||
Max Speed((r/min) | 5000 | |||
Max Rcf(×g) | 4800 | |||
Speed Accuracy | ±50r/min | |||
Control and drive system | AC variable frequency motor, microcomputer control | |||
compressor | Standard no cooling (Optional Refrigerated) | |||
Running program | 20set | |||
Temperature setting Range | Standard no including | |||
Temperature Accuracy | Standard no including | |||
Time Range | 1-99h59min | |||
Power | 0.8 KW/2.0KW(Refrigerated) | |||
Power supply | AC220V 50Hz | |||
Noise Level | ≤65 dB | |||
SIZE(L×W×H) | 740×620×900 mm | |||
Weight | 85 Kg/180Kg(Refrigerated) | |||
Rotor Spec: | Capacity | Speed | RCF | |
Swing rotor | 6×500 ml | 3600 | 2850 | |
4×500 ml | 4000 | 3580 | ||
4×250 ml flat bottom | 4000 | 2780 | ||
4×100 ml | 5000 | 4800 | ||
16×15ml/10ml | 4000 | 2960 | ||
32×15ml/10ml | 4000 | 2960 | ||
8×50 ml | 4000 | 2960 | ||
48×5 ml Vacuum blood collection tube | 4000 | 2960 | ||
48×5 ml/2ml Vacuum blood collection tube |
4000 | 2960 | ||
76×5 ml/2ml Vacuum blood collection tube |
4000 | 3080 | ||
Swing rotor |
148×5 ml/2ml Vacuum blood collection tube
|
4000 | 3420 | |
Swing micro-plate rotor | 2X2X96hole | 4000 | 2360 |
