Home > Products > Large Capacity Centrifuge Machine > 4x1000ml Large Scale Centrifuge Vertical High Speed Refrigerated Centrifuge

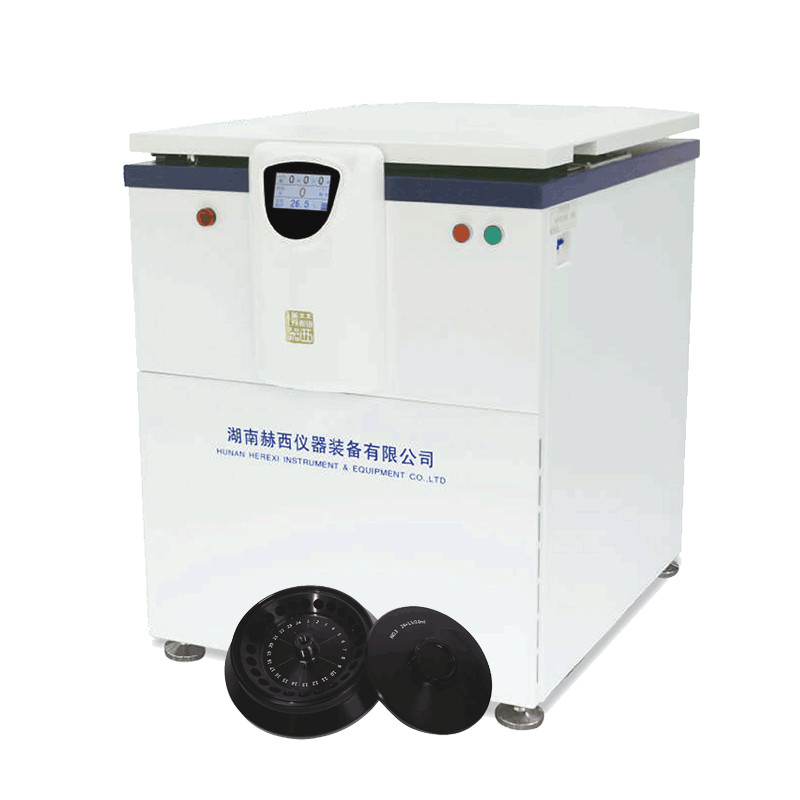

4x1000ml Large Scale Centrifuge Vertical High Speed Refrigerated Centrifuge

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: HR26M

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 211200¥

Packaging Details: 840×710×950mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

1000ml Large Scale Centrifuge

,

Refrigerated Large Scale Centrifuge

,

Vertical High Speed Refrigerated Centrifuge

The Name Of The:
HR26M High Speed Refrigerated Centrifuge
Rotor Capacity:
4×1000ml
Highest Speed:
25000min
Aximum Relative Centrifugal Force:
58696×g
Operating Temperature:
-20℃~+40℃
Program:
16
Timing Range:
1min-99h59min
Weight Of The:
260kg
The Name Of The:
HR26M High Speed Refrigerated Centrifuge
Rotor Capacity:
4×1000ml
Highest Speed:
25000min
Aximum Relative Centrifugal Force:
58696×g
Operating Temperature:
-20℃~+40℃
Program:
16
Timing Range:
1min-99h59min
Weight Of The:
260kg
4x1000ml Large Scale Centrifuge Vertical High Speed Refrigerated Centrifuge

Large Capacity Centrifuge HR26M Vertical High-Speed Refrigerated Centrifuge | Laboratory High Speed Large Capacity

Large-capacity centrifuges just as its name implies is its capacity is larger than the ordinary centrifuge, the main difference lies in the capacity of a single rotor or the total capacity is large, it's technology of centrifuge and rotor with higher requirements, general large capacity centrifuge is low speed, but the centrifuge technology mature gradually, also has a large capacity high-speed centrifuge, HR26M vertical high speed refrigerated centrifuge belongs to high speed and large capacity refrigerated centrifuge



Characteristic:

1. Adopt Mitsubishi PLC (in accordance with EU Electromagnetic Compatibility Directive 2014/30/EU and IEC_61131-2-2007) and Weilun touch screen (in accordance with NEMA4 protection regulations and EU CE electrical certification standards), with independent research and development control panels and high torque AC frequency conversion The motor is stable and quiet, providing a comfortable laboratory environment.

2. Fluorine-free refrigeration compressor unit and environmentally friendly refrigerant R404a, with a wide temperature control range: -20 °C - +40 °C, and can be set during the operation of the centrifuge; with pre-cooling function, can quickly cool down to the set temperature With standby cooling function, it can maintain the set temperature in standby mode; it has heating and defrosting function.

3. It has various early warning functions such as overspeed, over temperature, unbalance, under pressure and overpressure, three-stage damping and shock absorption, special combination damping device, which makes the motor run safely and reliably, prevent the sample from resuscending and achieve excellent centrifugal effect. .

4. TFT-LCD true color display, touch control mode, display setting parameters and operating parameters at the same time, the operation interface is intuitive, simple and convenient to use; the operation menu can be provided in multiple languages ​​(Chinese, English).

5. Bio-safety airtight angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spillage and fully guarantee the safety of workers and laboratory environment.

6. Rear austenitic 304 stainless steel centrifugal chamber with all-steel sprayed plastic shell, one-piece stamped steel front face and three-layer steel protective cover, etc., which are both durable and durable, ensuring the safety of workers and laboratories.

7. It adopts mechanical door lock, which is easy to operate and adapt to various harsh environments. Simply close the door cover, it will trigger the door lock system and lock the door cover safely.

8.10 speed acceleration and 10 speed reduction rate control, can store 16 sets of user-defined programs, can modify the control parameters of the running rotor at any time, can display the speed rise curve, centrifugal integral curve, temperature curve.

9. Multi-standard aviation forged aluminum rotor (angle rotor only) and a variety of polyamide fiber adapters are available.

10. The chassis has casters and carbon steel caster adjustment blocks to facilitate the movement and level adjustment of the centrifuge.

11. It has CFDA filing and CFDA production qualification, and has passed ISO 9001 (2015) certification and ISO 13485 (2016) certification.



Technical Parameters:

Product Model HR26M
MAX Capacity 4×1000 ml
MAX SPEED(r/min) 25000
MAX RCF(×g) 58696
Speed Accuracy ±50r/min
Control and drive system AC variable frequency motor, microcomputer control
Compressor Refrigeration compressor unit, fluorine-free refrigerant(R404a)(R404a)
Running program 16个
Temperature setting Range -20℃~+40℃
Temperature Accuracy ±1℃
Time Range 1-99h59min
Power AC220V 50Hz
WEIGHT 260Kg
Noise Level <65 dB(A)
SIZE(L×W×H) 840×730×960 mm





Rotor spec::

Product NAME Capacity SPEED RCF
Angle rotor 24×1.5/2.0 ml 25000 58696
8×50 ml round bottom 21000 48318
8×50 ml conical bottom 21000 51768
6×250 ml/300ml 12000 21734
6×500 ml Beckman bottle 10000 17776
4×1000 ml 8000 12594
