Home > Products > Refrigerated Centrifuge Machine > 2Kw Floor Standing Centrifuge High Speed 20600rpm Low Temperature Centrifuge

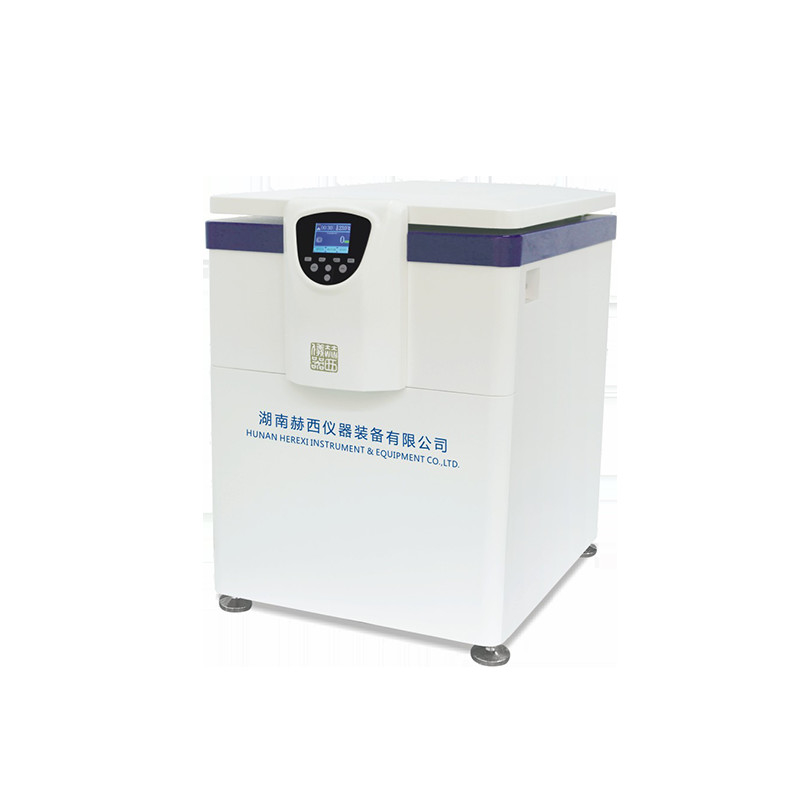

2Kw Floor Standing Centrifuge High Speed 20600rpm Low Temperature Centrifuge

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: HR/T20MM

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 62400¥

Packaging Details: 710×560×770mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

2Kw Floor Standing Centrifuge

,

Floor Standing Centrifuge High Speed

,

20600rpm Low Temperature Centrifuge

The Name Of The:
HR/T20MM Vertical High-speed Refrigerated Centrifuge
Rotor Capacity:
4×750ml
Highest Speed:
20600min
Aximum Relative Centrifugal Force:
29280×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
150kg
The Name Of The:
HR/T20MM Vertical High-speed Refrigerated Centrifuge
Rotor Capacity:
4×750ml
Highest Speed:
20600min
Aximum Relative Centrifugal Force:
29280×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
150kg
2Kw Floor Standing Centrifuge High Speed 20600rpm Low Temperature Centrifuge

Inspection Refrigerated Centrifuge HR/T20MM Floor Type High-Speed Refrigerated Centrifuge|Centrifuges At Low Temperature

With an extraordinary experimental throughput of up to 4 x 750 mL, it is ideal for floor-standing high-speed, high-throughput applications with exceptional versatility. It is mainly used in the fields of biochemistry, medical and health, food safety, life science, agriculture and forestry science, animal husbandry science, blood bank, blood station, biological products, pharmaceutical products and other fields to prepare and separate samples for precipitation and concentration

Hunan Hesi Instrument equipment Co., Ltd. is a professional high-tech company integrating research, production and sales of refrigerated centrifuges, medical centrifuges, vacuum centrifuges, high speed centrifuges, low speed centrifuges, large capacity centrifuges, moisture meter and other laboratory instruments and equipment. And through ISO9001 quality system certification and CE certification, as well as ISO13485 quality system certification, centrifuge reasonable price exquisite design, novel shape, used in colleges and universities, scientific research units, biopharmaceutical, medical, petrochemical and other fields, "high-speed refrigerated centrifuge technical conditions" drafter

The high speed refrigerated centrifuge adopts microcomputer control and brushless DC motor. It is a special equipment for rapid separation of mixed liquid. It can be widely used in scientific research, genetic engineering, genetics, life science, biochemistry, medical treatment and other units to carry out laboratory tests, biochemical tests, separation of suspension and other work.
Characteristic:
1. Adopt single chip microcomputer from Yingruian company and drive module from Infineon Company, with independently developed control board and large torque AC frequency conversion motor, stable operation and low noise, providing comfortable laboratory environment.

2. Using non-fluorine refrigeration compressor unit and environmental protection refrigerant R404a, with a wide range of temperature control: -20℃-+40℃, and can be set during the operation of the centrifuge; With pre-cooling function, can quickly cool down to the set temperature; With standby cooling function, can maintain the set temperature in standby state; With heating and defrosting function.

3. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other early warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.

4. Tft-lcd true color display screen, touch screen button, with centrifugal force display special key, at the same time display set parameters and running parameters, running parameters can be changed at any time, without stopping, the operation interface is intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).

5. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.

6. Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.

7.HR/T20MM vertical high speed refrigerated centrifuge adopts silent electromechanical motor lock, easy to use, just close the door cover gently, it will trigger the door lock system, the door cover will be locked safely.

8.10-speed acceleration and 10-speed deceleration rate control, can store 20 groups of user defined programs, can modify the control parameters of the running rotor at any time.

9. Multi-specification aero-forged aluminum rotor (Angle rotor only) and polyamide fiber adapter are optional, suitable for 1.5ml to 750mL centrifuge tubes or reagent bottles; All kinds of MTP microporous plates, PCR plates, cell culture plates and deep porous plates can be centrifuged.

10. The chassis has casters and carbon steel casters adjustment block, convenient centrifuge movement and level adjustment.

11.HR/T20MM vertical high-speed refrigerated centrifuge has the CFDA record and CFDA production qualification, and has passed the ISO 9001 (2015) certification and ISO 13485 (2016) certification.

Technical Parameters::

ModelHR/T20MM
Max CapacitySwing rotor 4×750 ml
Max speed(r/min)20600r/min
Speed Accuracy±50r/min
MAX RCF(×g)29280×g
Refrigerated systemFluorine-free refrigeration compressor unit(R404a)
Temperature setting Range-20℃~40℃
Temperature Accuracy±1℃
Running program20组
Control and drive systemAC variable frequency motor, microcomputer control
POWER2.0Kw
Time Range1-99h59min
Noise Level≤65 dB
Rotor identificationAUTO
POWER SUPPLYAV220V 50Hz
WEIGHT150 Kg
SIZE710×560×770 mm


Rotor spec:

Parts NameCapacityHR/T20MM
speed(r/min)RCF(×g)
Swing rotor4×750 ml40003520
4×250 ml conical bottom40002780
4×250 ml flat bottom40002780
4×500 ml40003580
Adapter4×250 ml 40003580
4×8×15 ml 40003580
4×12×10 ml 40003580
4×3×50 ml 40003580

4×19×5 ml
(Vacuum blood collection tube)

4000 3580
Angle rotor12×1.5/2.0 ml2060029280
24×1.5/2.0 ml1400018220
12×10 ml/5ml1400018810
8×15ml round bottom1200014830
8×15ml conical bottom1200015120
6×50 ml round bottom1200013820
6×50 ml conical bottom1200015120
8×50 ml round bottom1000013800
8×50 ml conical bottom1000014880
6×100 ml1100013310
6×250 ml80009660
Swing micro-plate rotor2×2×96hole40002360
Swing micro-plate rotor4×2×96hole40003150
