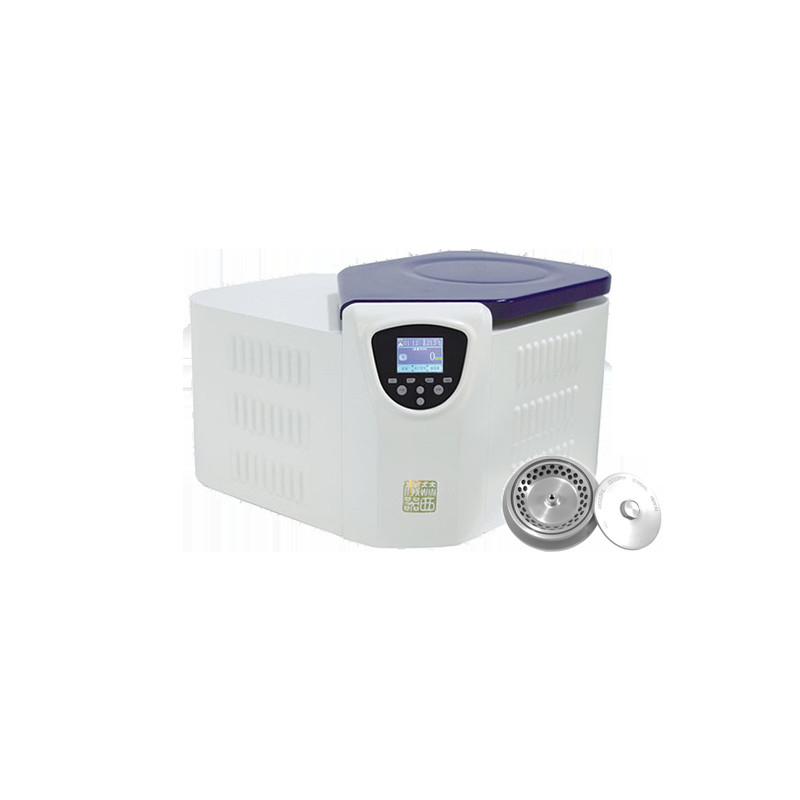

High Speed Medical Refrigerated Centrifuge 3H24ri Intelligent Sample Processing

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: 3H24RI

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 85800¥

Packaging Details: 710×630×350mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

Medical Refrigerated Centrifuge 3H24ri

,

4×100ml Medical Refrigerated Centrifuge

The Name Of The:
3H24RI Intelligent High Speed Refrigerated Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
24000min
Aximum Relative Centrifugal Force:
29740×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
75kg
The Name Of The:
3H24RI Intelligent High Speed Refrigerated Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
24000min
Aximum Relative Centrifugal Force:
29740×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
75kg
High Speed Medical Refrigerated Centrifuge 3H24ri Intelligent Sample Processing

High Speed Medical Centrifuge 3 H24ri Intelligent High Speed Refrigerated Centrifuge | Sample Processing Equipment

Hunan Hesi Instrument equipment Co., Ltd. is a professional high-tech company integrating research, production and sales of refrigerated centrifuges, medical centrifuges, vacuum centrifuges, high speed centrifuges, low speed centrifuges, large capacity centrifuges, moisture meter and other laboratory instruments and equipment. And through ISO9001 quality system certification and CE certification, as well as ISO13485 quality system certification, centrifuge reasonable price exquisite design, novel shape, used in colleges and universities, scientific research units, biopharmaceutical, medical, petrochemical and other fields, "high-speed refrigerated centrifuge technical conditions" drafter


The 3H series can be selected with a variety of Angle rotors and horizontal rotors, up to 100 sets of custom programs, with excellent multi-purpose characteristics, is the classic product of Hussey instrument centrifuge. Application: fine bacteria, protein precipitation, nucleic acid extraction, cell/subcellular component separation, environmental sample processing.

In 2010, it won the "Independent Innovation Silver Award" issued by China Instrument industry Association.



3H24RI intelligent desktop high speed refrigerated centrifuge



The 3H series can be selected with a variety of Angle rotors and horizontal rotors, up to 100 sets of custom programs, with excellent multi-purpose characteristics, is the classic product of Hussey instrument centrifuge. Application: bacteria, protein precipitation, nucleic acid extraction, cell/subcellular component separation, environmental sample processing.



Scope of application is very extensive medical centrifuge in medical industry, mainly used in blood separation, DNA research/immunity hematology laboratory, checkout room, laboratory, etc., is a medicine, biochemistry laboratory is immune to serum, plasma, radiation ideal products, is all kinds of hospital blood Banks, laboratory, blood stations and medical institutions and medical institutions necessary equipment.



1. Adopt single chip microcomputer and infineon drive module, with independent research and development control board and large torque AC/DC brushless motor, stable operation and low noise, provide a comfortable laboratory environment.



2. Using non-fluorine refrigeration compressor unit and environmental protection refrigerant R404a, with a wide range of temperature control: -20℃ -40 ℃, and can be set during the operation of the centrifuge; With pre-cooling function, can quickly cool down to the set temperature; With standby cooling function, can maintain the set temperature in standby state; With heating and defrosting function.



3.3H24RI intelligent desktop refrigerated high-speed centrifuge, with overspeed, overtemperature, imbalance, undervoltage, overvoltage and other early warning functions, three-level damping shock absorption, special combination of shock absorption device, so that the motor stable operation of safe and reliable, to prevent sample suspension, to achieve excellent centrifugal effect.



4. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, without stopping, the operation interface is intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).



5. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.



6. Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.



7. Exquisite industrial appearance design, diamond shape novel and beautiful, more suitable for the corner, save the laboratory limited table space.



10. Adopt mute electromechanical motor door lock, easy to use, just close the door cover gently, it will trigger the door lock system, the door cover is locked safely.



11.10 speed up and 10 speed down control, can store 100 groups of user defined programs, convenient to call common programs, boot for the last used program.



12. Multi-specification aero-forged aluminum rotor (Angle rotor only) and polyamide fiber adapter are optional, suitable for 0.2ml to 100mL centrifuge tube or reagent bottle; Can centrifugal all kinds of MTP microporous plate, PCR plate, cell culture plate.



13. Have the CFDA record and CFDA production qualification, passed the ISO 9001 (2015) certification and ISO 13485 (2016) certification.





Technical Parameters
Model 3H24RI
Max Capacity 4×100 ml
Max Speed(r/ min) 24000
Max Rcf((×g) 39740
Default rotor 12×1.5/2.0 ml(Titanium alloy)
Speed Accuracy ±50r/min
Cooling System Fluorine-free refrigeration compressor unit and control valve(R404a)
Temperature setting Range -20℃~40℃
Temperature setting Range ±1℃
Running program 100SET
power 1.5 Kw
Time Range 1-99h59min
Rotor recognition AUTO
Noise Level ≤60 dB
Power supply AV220V 50Hz
weight 75 Kg
Size(L×W×H) 710×630×350 mm



Rotor Spec::

Product NAME Capacity 3H24RI
SPEED RCF
Angle rotor 12×1.5/2.0ml 24000 39740
48×0.5ml 13500 15640
18×1.5ml 16000 20606
24×1.5/2.0ml 16000 23798
30×1.5ml 12000 15294
48×1.5ml 13000 18138
10×5ml 20000 27596
8×7ml 14000 12271
12×10ml/5ml 15000 21595
8×15ml conical bottom 12000 14830
8×15ml round bottom 12000 14830
12×10ml through -hole 6000 3740
6×50ml through -hole 6000 3670
6×50ml round bottom 12000 13820
6×50ml conical bottom 12000 15120
4×100ml 11000 12700
Swing rotor 12×10ml 4000 2360
4×50ml 4000 2360
4×100ml 4000 2490
Swing micro-plate rotor 2×2×48孔 3000 1120
