Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: TGL20MW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 57200￥
Packaging Details: 630×760×400mm
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |
TGL20MW Table Top Large Capacity High Speed Refrigerated Centrifuge |
Rotor Capacity: |
4×500ml |
Highest Speed: |
20600min |
Aximum Relative Centrifugal Force: |
29280×g |
Operating Temperature: |
-20℃～+40℃ |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
110kg |
The Name Of The: |
TGL20MW Table Top Large Capacity High Speed Refrigerated Centrifuge |
Rotor Capacity: |
4×500ml |
Highest Speed: |
20600min |
Aximum Relative Centrifugal Force: |
29280×g |
Operating Temperature: |
-20℃～+40℃ |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
110kg |
Scope of application is very extensive medical centrifuge in medical industry, mainly used in blood separation, DNA research/immunity hematology laboratory, checkout room, laboratory, etc., is a medicine, biochemistry laboratory is immune to serum, plasma, radiation ideal products, is all kinds of hospital blood Banks, laboratory, blood stations and medical institutions and medical institutions necessary equipment.
TGL20MW centrifuge table high speed large capacity frozen is mainly used in biochemistry, health, food safety, life science, agriculture and forestry, animal husbandry science, blood bank, blood stations, biological products, pharmaceutical products and other fields to the ideal equipment of the preparation of sample separation, precipitation and enrichment, is inspirational to replace imported equipment and a large number of exports of high-tech products.

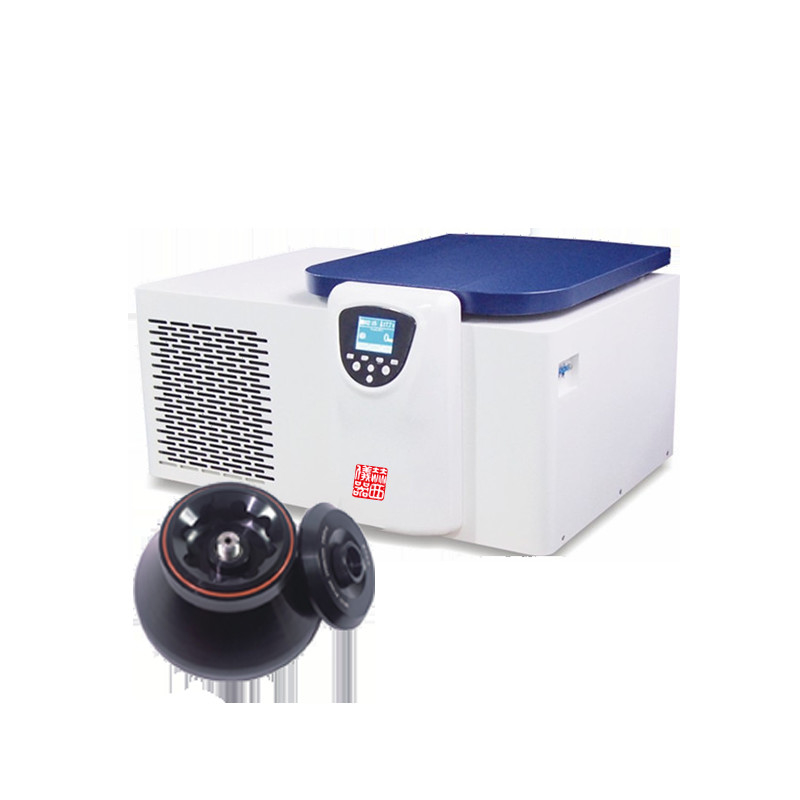

TGL20MW table top large capacity high speed refrigerated centrifuge
1. Adopt single chip microcomputer from Yingruian company and drive module from Infineon Company, with independently developed control board and large torque AC frequency conversion motor, stable operation and low noise, providing comfortable laboratory environment.
2. Using non-fluorine refrigeration compressor unit and environmental protection refrigerant R404a, with a wide range of temperature control: -20℃ -40 ℃, and can be set during the operation of the centrifuge; With pre-cooling function, can quickly cool down to the set temperature; With standby cooling function, can maintain the set temperature in standby state; With heating and defrosting function.
3. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other early warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.
4. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, without stopping, the operation interface is intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
5. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.
6. Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.
7. Adopt mute electromechanical motor door lock, easy to use, just close the door cover gently, it will trigger the door lock system, the door cover is locked safely.
8.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, boot for the last used program.
9. Multi-specification aero-forged aluminum rotor (Angle rotor only) and polyamide fiber adapter are optional, suitable for 0.2ml to 250mL centrifuge tube or reagent bottle; All kinds of MTP microporous plates, PCR plates, cell culture plates and deep porous plates can be centrifuged.
10. Have CFDA record and CFDA production qualification, passed ISO 9001 (2015) certification and ISO 13485 (2016) certification.
| Technical Parameters | |
| Product Name | TGL20MW |
| Max Speed(r/ min) | 6×250 ml |
| Max Rcf(×g) | 20600 |
| Max Capacity | 29280 |
| Standard motor | 12×1.5/2.0ml |
| Speed Accuracy | ±50r/min |
| Refrigerating system | Fluorine-free refrigeration compressor unit(R404a) |
| Temperature control range | －20℃～+40℃ |
| Temperature accuracy | ±1℃ |
| Running program | 20 sets |
| Control and driving system | AC converter motor,microcomputer control |
| Total power | 1.8 Kw |
| Timer | 1-99h59min, both continuous/ instantaneous centrifuge |
| Noise | ≤60 dB |
| Rotor identification | Automatic rotor identification function |
| Net weight | 110 Kg |
| Size(L×W×H) | 630×760×400 mm |
| Product name | Capacity | Max Speed(r/ min) | Max Rcf(×g) |
| Angle rotor | 12×1.5/2.0 ml | 20600 | 29280 |
| 24×1.5/2.0 ml | 14000 | 18220 | |
| 12×10 ml/5ml | 14000 | 18810 | |
| 8×15 ml round bottom | 12000 | 14830 | |
| 8×15 ml v-bottom | 12000 | 14830 | |
| 6×50 ml round bottom | 12000 | 13820 | |
| 6×50 ml v-bottom | 12000 | 15120 | |
| 8×50 ml round bottom | 10000 | 11400 | |
| 8×50 ml v-bottom | 10000 | 11400 | |
| 4×100 ml | 10000 | 10500 | |
| 6×100 ml | 11000 | 13310 | |
| 6×250 ml | 8000 | 9660 | |
| Swing rotor | 4×50 ml | 5000 | 4620 |
| 4×100 ml | 5000 | 4800 | |
| 4X500ML | 4000 | 3580 | |
| 8×50 ml | 4000 | 2960 | |
| 32×15 ml/10ml | 4000 | 2960 | |
| 48×5 ml normal tube | 4000 | 2960 | |
48×5 ml/2 ml (vacuum tube) | 4000 | 2423/2960 | |
76×5 ml/2 ml (vacuum tube) | 4000 | 3080 | |
| 4×250 ml | 4000 | 2780 | |
| Adapters | 8×50 ml | ||
| 4×6×15 ml | |||
| 4×8×10 ml | |||
| 4×10×5 ml | |||
| Horizontal microplate rotor | 2×2×96 holes | 4000 | 2360 |
