Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: H/T18MM
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 9900¥
Packaging Details: 500×440×330mm
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |
H/T18MM High Speed Centrifuge |
Rotor Capacity: |
4×100ml |
Highest Speed: |
18500min |
Aximum Relative Centrifugal Force: |
23610×g |
Operating Temperature: |
The Normal Temperature |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
35kg |
The Name Of The: |
H/T18MM High Speed Centrifuge |
Rotor Capacity: |
4×100ml |
Highest Speed: |
18500min |
Aximum Relative Centrifugal Force: |
23610×g |
Operating Temperature: |
The Normal Temperature |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
35kg |
Hunan Hexi Instrument Equipment Co., Ltd. was established in Xiangjiang New Area in 2007. After more than ten years of development, it has become a high-tech enterprise integrating r&d, production and sales of laboratory instruments and equipment with independent intellectual property rights, independent brand and independent innovation ability.
Standing director of Laboratory Instrument Branch of Chinese Instrument Society
Standing director of Laboratory Instrument Branch of China Instrumentation Industry Association
Vice president of Laboratory Instrument Association, Chinese Association for Inspection and Quarantine
The company mainly produces various kinds of laboratory centrifuge/moisture rapid tester and vacuum centrifugal concentrator and has passed iso9001:2015 quality management system certification, ISO13485:2016 medical device quality management system certification and CE certification. Led the preparation of ASTM international standard for total solid content of natural rubber.
This series of centrifuges are widely used in experiments with small sample size, many steps, large centrifugal force and low temperature requirements. Such as: biochemistry, genetic engineering, agriculture and forestry disciplines, food hygiene, hospitals and other research units of laboratory sample separation.

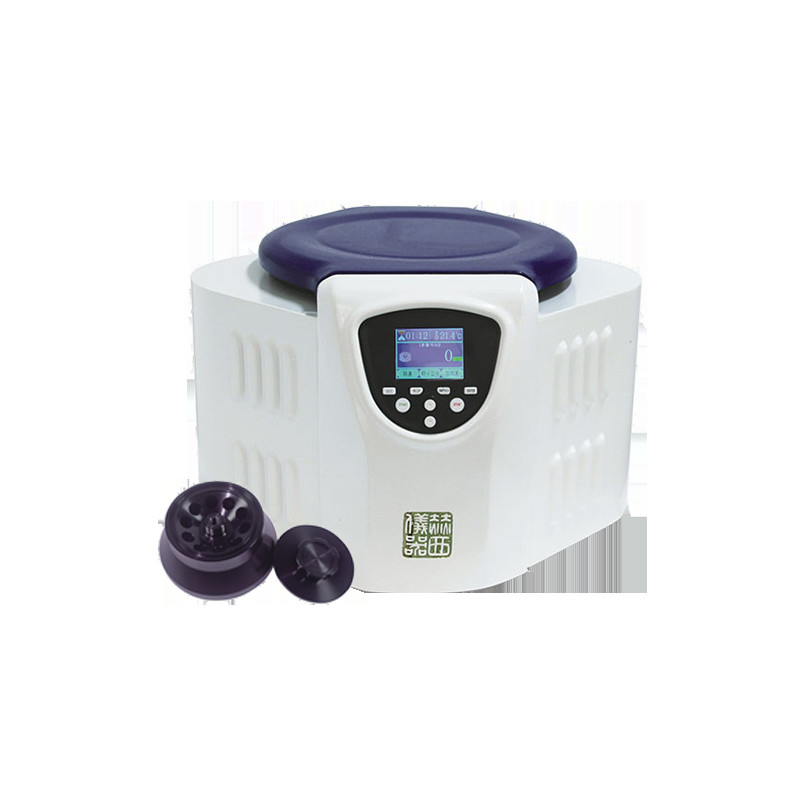

H/T18MM table top high speed normal temperature centrifuge product details
1. Adopt single chip microcomputer from Yingruien company and drive module from Infineon Company, with independently developed control board and large torque BRUShless DC motor, stable operation and low noise, provide comfortable laboratory environment.
2. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation, safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.
3. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, no need to stop the operation interface intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
4.H/T18MM table top high speed normal temperature centrifuge, biosafety air tightness Angle rotor with silicone rubber integral seal ring (EU RoHS 2015/863), can avoid aerosol spillover, fully ensure the safety of staff and laboratory environment.
5.100V-230V wide voltage design, improve the centrifuge to the voltage adaptation range (optional).
6. Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.
7. Adopt mute electromechanical motor door lock, easy to use, just close the door cover gently, it will trigger the door lock system, the door cover is locked safely.
8.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, boot for the last used program.
9. Multi-specification aero-forged aluminum rotor (Angle rotor only) and polyamide fiber adapter are optional, suitable for 0.2ml to 100mL centrifuge tube or reagent bottle; Can centrifugal all kinds of MTP microporous plate, PCR plate, cell culture plate.
10.H/T18MM table top high speed normal temperature centrifuge, with CFDA record and CFDA production qualification, passed ISO 9001 (2015) certification and ISO 13485 (2016) certification.
Technical Parameters: | |
Model | H/T18MM |
Max Speed(r/min) | 18500 |
Max RCF(×g) | 23610 |
Max Capacity | 4×100ml |
Time Range | 1-99h59min |
Running program | 20set |
power | 500w |
Noise Level | ≤60dB |
Power supply | AC220V 50Hz |
weight | 35kg |
Size(L*W*H) | 550×440×330mm |
Rotor spec:
H/T18MM | Capacity | Speed(r/ min) | RCF(×g) |
Angle rotor | 12×1.5/2.0ml | 18500 | 23610 |
18×1.5/2.0ml | 15000 | 18111 | |
24×1.5/2.0ml | 14000 | 18220 | |
10×5ml | 14000 | 13520 | |
12×10ml/5ml | 12000 | 13820 | |
8×15ml conical bottom | 12000 | 14830 | |
8×15ml round bottom | 12000 | 14830 | |
6×50ml conical bottom | 11000 | 12700 | |
6×50ml round bottom | 11000 | 11610 | |
6×50ml Through hole | 6000 | 3670 | |
Swing rotor | 12×10ml | 4000 | 2360 |
4×100ml | 4000 | 2490 | |
Swing micro-plate rotor | 2×2×48 hole | 3000 | 1120 |
