Home > Products > Medical Centrifuge Machine > Clinical Medical Centrifuge Machine Tabletop Low Speed Multi Tube Rack

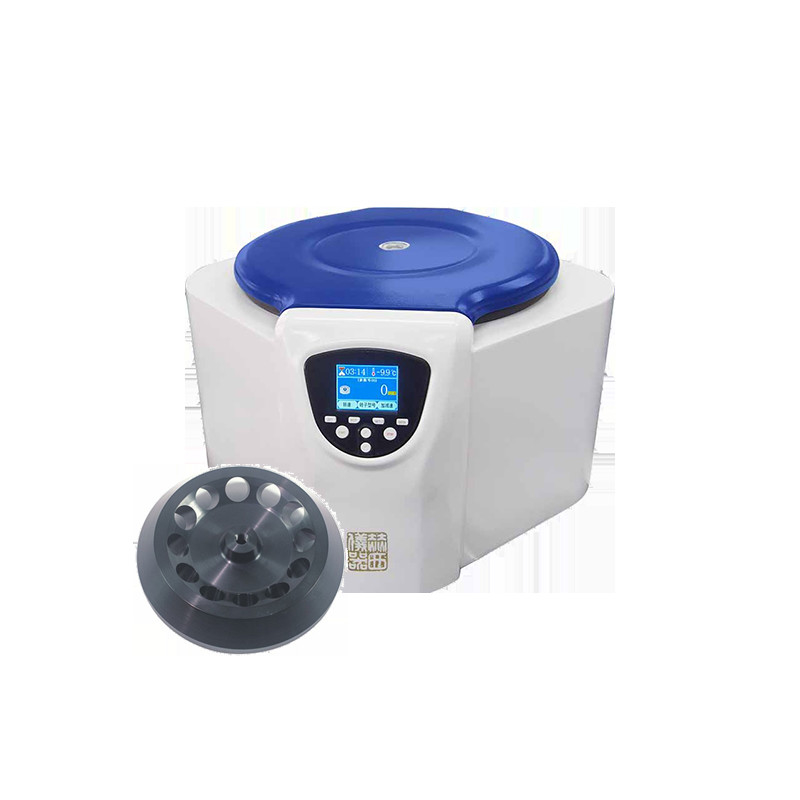

Clinical Medical Centrifuge Machine Tabletop Low Speed Multi Tube Rack

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: TD6

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 9700¥

Packaging Details: 600×540×360mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

Clinical Medical Centrifuge Machine

,

Multi Tube Rack Medical Centrifuge Machine

,

Clinical Tabletop Low Speed Centrifuge

The Name Of The:
TD6 Table Top Low Speed Multi-tube Rack Centrifuge
Rotor Capacity:
4×250ml
Highest Speed:
6000min
Aximum Relative Centrifugal Force:
4800×g
Operating Temperature:
The Normal Temperature
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
35kg
The Name Of The:
TD6 Table Top Low Speed Multi-tube Rack Centrifuge
Rotor Capacity:
4×250ml
Highest Speed:
6000min
Aximum Relative Centrifugal Force:
4800×g
Operating Temperature:
The Normal Temperature
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
35kg
Clinical Medical Centrifuge Machine Tabletop Low Speed Multi Tube Rack

Clinical Medical Imported Centrifuge | TD6 Biomedical Laboratory Centrifuge Table Low Speed More Pipe Rack

Hunan Hexi Instrument Equipment Co., Ltd. was established in Xiangjiang New Area in 2007. After more than ten years of development, it has become a high-tech enterprise integrating r&d, production and sales of laboratory instruments and equipment with independent intellectual property rights, independent brand and independent innovation ability.

Standing director of Laboratory Instrument Branch of Chinese Instrument Society

Standing director of Laboratory Instrument Branch of China Instrumentation Industry Association

Vice president of Laboratory Instrument Association, Chinese Association for Inspection and Quarantine

The company mainly produces various kinds of laboratory centrifuge/moisture rapid tester and vacuum centrifugal concentrator and has passed iso9001:2015 quality management system certification, ISO13485:2016 medical device quality management system certification and CE certification. Led the preparation of ASTM international standard for total solid content of natural rubber.



Favored by the majority of customers, hussey instrument is one of the best-selling models, equipped with a variety of pipe racks, adapters, is the ideal choice for clinical testing, laboratory analysis. Widely used in biology, chemistry, medicine, agriculture and forestry, food safety, blood stations, clinical trials and other fields of experimental and scientific research work.



TD6 table top low speed multi-tube frame centrifuge product details



Suitable for biology, chemistry, radiation immunity, medicine, pharmacy, food and environmental protection and other experimental research units, can be used for the separation and preparation of biological products and blood products.



Equipped with a variety of pipe racks, adapters, is the ideal choice for clinical testing, laboratory analysis. Widely used in biology, chemistry, medicine, agriculture and forestry, food safety, blood stations, clinical trials and other fields of experiment and scientific research work.





TD6 desktop low-speed multi-tube rack centrifuge features:



1. Adopt single chip microcomputer from Yingruien company and drive module from Infineon Company, with independently developed control board and large torque BRUShless DC motor, stable operation and low noise, provide comfortable laboratory environment.



2. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation, safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.



3. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, no need to stop the operation interface intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).



4.TD6 multi-tube frame desktop low-speed centrifuge, biosafety air tightness Angle rotor with silicone rubber integral seal ring (EU RoHS 2015/863), can avoid aerosol spillover, fully ensure the safety of staff and laboratory environment.



5. The rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching forming steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.



6.100V-230V wide voltage design, improve the centrifuge to the voltage adaptation range (optional).



7. Adopt mute electromechanical motor door lock, easy to use, just close the door cover gently, it will trigger the door lock system, the door cover is locked safely.



8.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, boot for the last used program.



9. Aero forged aluminum rotor (Angle rotor only) and polyamide fiber adapter optional, suitable for 0.2ml to 250mL (TDZ6-WS maximum support only 100mL) centrifuge tube or reagent bottle; All kinds of MTP microporous plates, PCR plates, cell culture plates and deep porous plates can be centrifuged.



10.TD6 Multi-tube frame desktop low-speed centrifuge has THE CFDA record and CFDA production qualification, and has passed the ISO 9001 (2015) certification and ISO 13485 (2016) certification.



Technical Parameters
Product Name TD6
Max Speed(r/ min) 6000
Max Rcf(×g) 4800
Max Capacity 4×250 ml
Timer 1-99h59min/Series/Short-time centrifugation
Speed Accuracy ±50r/min
Control and drive system high-torque DC brushless motor, microcomputer control
Total Power 500w
Noise ≤60dB
Power supply AC220V 50Hz
Net Weight 35kg
Size(L×W×H) 600×540×360mm





Matched Rotor Parameter:



Product Name Capacity Max Speed(r/ min) Max Rcf(×g)
Angle rotor 12×10 ml/15ml 6000 3740
Swing rotor 48×5 ml(Normal tube) 4000 2960

48×5 ml/2ml

(Vacuum tube)

4000 2960

76×5 ml/2ml

(Vacuum tube)

4000 3080
16×15 ml/10ml 5000 4620
24×10 ml/15ml 4000 2960
32×10 ml/15ml 4000 2960
4×50 ml 5000 4600
8×50 ml 4000 2960
4×100 ml 5000 4800
Swing rotor 4×250 ml 4000 2780
Horizontal microplate rotor 2×2×96 holes 4000 2360
