Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: TD5T
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 43600￥
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |
TD5T Oil Centrifuge |
Highest Speed: |
3000min |
Maximum Relative Centrifugal Force: |
1665xg |
Operating Temperature: |
Room Temperature ~ + 70 ℃ |
The Weight Of The: |
50kg |
The Program: |
20 |
Timing Range: |
1min-99h59min |
Overall Dimensions: |
600×540×360mm |
The Name Of The: |
TD5T Oil Centrifuge |
Highest Speed: |
3000min |
Maximum Relative Centrifugal Force: |
1665xg |
Operating Temperature: |
Room Temperature ~ + 70 ℃ |
The Weight Of The: |
50kg |
The Program: |
20 |
Timing Range: |
1min-99h59min |
Overall Dimensions: |
600×540×360mm |
Hunan Husi Instrument Equipment Co., Ltd. is a professional high-tech company integrating research and development, production, sales and maintenance of laboratory instruments and equipment. At present, the products have formed more than 40 varieties of six series of Herexi 3HRI intelligent centrifuges, including high speed refrigeration, super capacity refrigeration, low speed refrigeration, low speed centrifuge and Herexi 3HRI intelligent centrifuge. The products are widely used in military industry, research institutes, colleges and universities, central blood stations, hospitals, biological products, pharmaceutical, biochemical testing, agricultural science, environmental protection and petrochemical production and scientific research fields. Our company takes "quality is life, integrity is fundamental, service is the first, reputation is the first" as the service purpose, to develop China's scientific equipment to catch up with the world's advanced level for the goal.

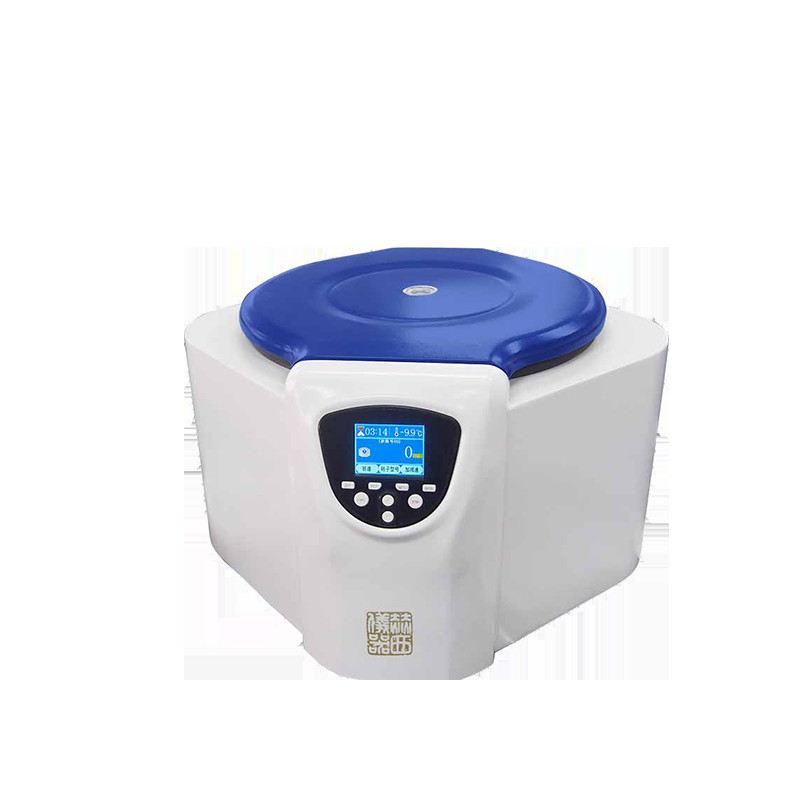

TD5T oil centrifuge (also known as crude oil moisture determination centrifuge) characteristics:
1.TD5T oil centrifuge is designed for crude oil neutralization sediment determination method (centrifuge), in line with GB/T6533-2012 (replace waste GB/T6533-86) standard requirements.
2. Determination of water and sediment in crude oil by centrifuge.
3. Ideal separation equipment for moisture determination in petroleum exploitation industry and scientific research institutes.
4. Adopt uniform heating mode, fast heating, high temperature control precision.
5. Microcomputer control, brushless DC frequency conversion motor with large torque; Steady speed, low motor noise, no daily maintenance.
6. All steel frame structure, overspeed protection, unbalanced protection, etc., to ensure man-machine safety.
7. Adopt mute electromechanical motor door lock.
8. PLC (liquid crystal) and LED (digital tube) two display modes, for user choice, speed, temperature, time and other control parameters, can be set freely, can be modified during operation, convenient use.
9. Equipped with double shock absorption device, with automatic balance function, smooth operation, visual balance can be separated.
| Technical parameters of the petroleum centrifuge | |
| product model | TD5T |
| max. cap | The 2,410ml horizontal rotor was used |
| Maximum rotational speed (r/min) | 3000r/min |
| Maximum centrifugation force (g) | 1665×g |
| Speed accuracy | ± 50 r/min (customizable to demand, multiple of 10) |
| any power-generating or power-driven machine | Large torque AC / DC frequency conversion motor, microcomputer control |
| Temperature control range | Room temperature ~70℃ |
| Temperature control accuracy | ±2℃ |
| Timed range | 1min-99h59min, with continuous centrifugation and instantaneous centrifugation |
| noise | ≤60dB |
| source | AC220V 50Hz |
| weight | 50kg |
| outline dimension | 600×540×360mm |
