Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: HT12MM
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 10600￥
Packaging Details: 1
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |

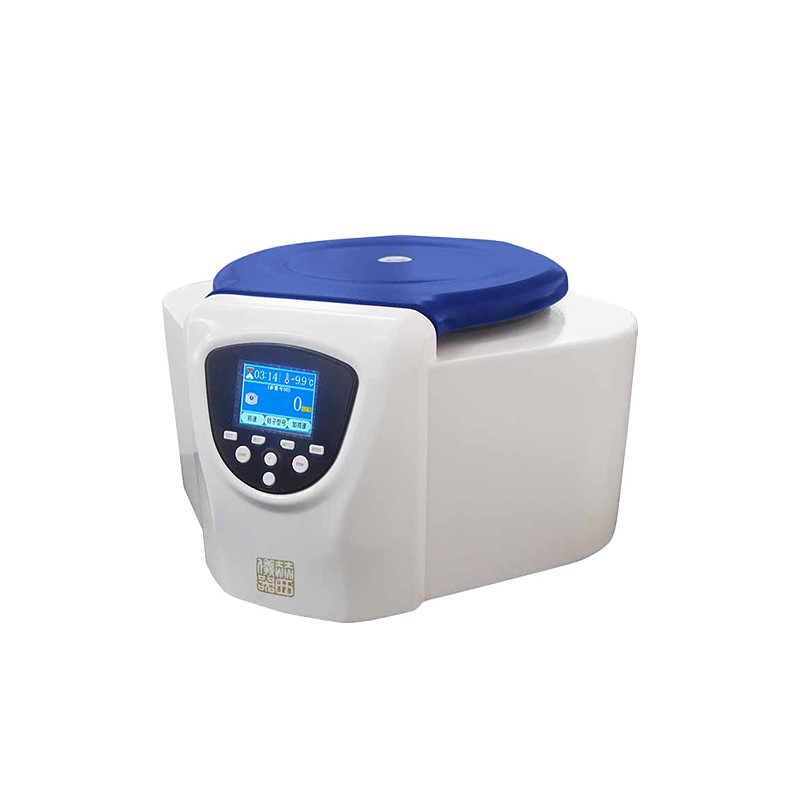

6-8 Combined Column Micro Blood Type Card Centrifuge H/T12MM |
Highest Speed: |
4000 |
Maximum Relative Centrifugal Force: |
2200xg |
Timing Range: |
1min-99h59min |
Maximum Production Capacity: |
12 CARDS |
Overall Dimensions: |
550×440×330 Mm |
The Name Of The: |
6-8 Combined Column Micro Blood Type Card Centrifuge H/T12MM |
Highest Speed: |
4000 |
Maximum Relative Centrifugal Force: |
2200xg |
Timing Range: |
1min-99h59min |
Maximum Production Capacity: |
12 CARDS |
Overall Dimensions: |
550×440×330 Mm |
Blood group card centrifuge development process:
With the rapid development of biological engineering technology in the world, microcolumn gel immunoassay technology stands out from the traditional routine blood group serology detection. It has been adopted by advanced countries in the world for its simple operation, clear results and rapid identification, replacing the traditional blood coagulation test which has been used for 100 years. Microcolumn gel immunoassay technology requires microcolumn gel card, and the detection microcolumn gel card must have a centrifuge equipped with a special rack, but the price of imported centrifuge is expensive and has many inconvenience.
Blood group card centrifuge is widely used in blood serology, routine detection of serum, red blood cell washing, microcolumn gel immunodetection experiments, etc. It is of great significance for clinical trials and analysis.
Generally, microcomputer control and automatic unbalance detection technology are used to meet the requirements of users.
Blood centrifuge is suitable for accurate determination of blood cell ratio value and can also be used for precipitation separation of trace blood and solution.The small blood treatment amount is large, convenient blood extraction, short centrifugation time, accurate detection, convenient to use.The capillary equipped with the sample is placed symmetrically into the rotor. After starting the instrument, the rotor rotates around the axis, rotating while creating a relative centrifugal force to separate the solution.
characteristic:
1. The H / T12MM blood centrifuge is a routine test for the serology of blood type.Microcolumn gels, and washed with red blood cells.Immune detection and other tests to develop a special centrifuge.Set up a variety of procedures according to different tests, accurate control and convenient to use.
2. Widely used in clinical medicine, biochemistry, immunology and other fields. It is a conventional instrument for centrifugal precipitation in the laboratory.
3. It is mainly used to determine the blood ratio of blood cells, and the separation of trace blood and trace solutions.It is one of the preferred products of the protein nucleic acid laboratory.
| technical parameter | An H / T12MM immune blood centrifuge |
| Maximum rotational speed (r/min) | 4000 |
| Maximum centrifugation force (g) | 2200 |
| Speed accuracy | ± 50 r/min (customizable to demand, multiple of 10) |
| Control and drive system | Large-moment DC brushless motor, microcomputer control |
| Maximum production capacity | 12 CARDS |
| Time range | 1min-99h59min, with continuous centrifugation and instantaneous centrifugation |
| noise | ≤60dB(A) |
| source | AC220V 50HZ |
| power | 120W |
| External size | 550×440×330 mm |
| weight | 35 Kg |
Rotor parameters:
| The rotor name | maximum speed | centrifugal force | use |
| The SERO rotor was washed with the red blood ball | 4000 | 1842 |
Blood type judgment, blood type agglutination reflects the observation; Cross-fitness test, conduct globulin test; Blood ball cleaning, serum, plasma extraction; |
| Lymphballs were washed with HLS rotor | 4200 | 2200 |
Lymphid balls were isolated and cultured cells were isolated; Removal of platelets (thrombin treatment); Cleaning of lymphatic balls; |
| Blood type card rotor | 4000 | 1824 | 6 Column, 8 column micro blood type cards, 12 cards |
