Home > Products > Medical Centrifuge Machine > 7116 R Trace High Speed Refrigerated Centrifuge Hospital Laboratory

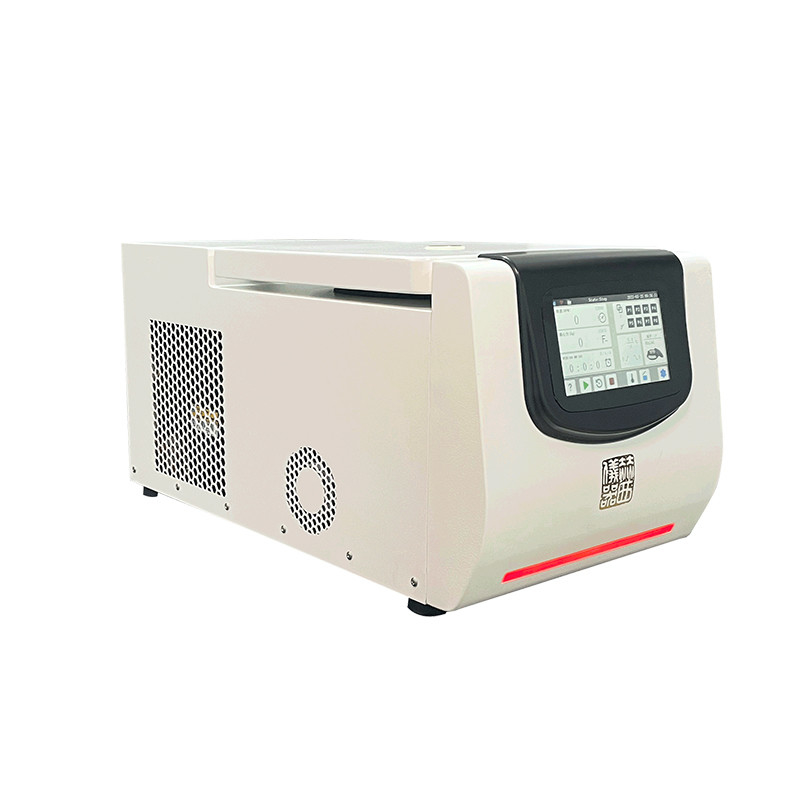

7116 R Trace High Speed Refrigerated Centrifuge Hospital Laboratory

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: 7116R

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 39800¥

Packaging Details: 650×350×325mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

16500min High Speed Refrigerated Centrifuge

,

48×1.5ml High Speed Refrigerated Centrifuge

,

Hospital Refrigerated Centrifuge

The Name Of The:
7116R Micro High Speed Refrigerated Centrifuge
Rotor Capacity:
48×1.5ml
Highest Speed:
16500min
Aximum Relative Centrifugal Force:
22500×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min59s
Weight Of The:
48.5kg
The Name Of The:
7116R Micro High Speed Refrigerated Centrifuge
Rotor Capacity:
48×1.5ml
Highest Speed:
16500min
Aximum Relative Centrifugal Force:
22500×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min59s
Weight Of The:
48.5kg
7116 R Trace High Speed Refrigerated Centrifuge Hospital Laboratory

7116 R Trace High Speed Refrigerated Centrifuge Hospital Laboratory With Clinical Inspection Freeze



Scope of application is very extensive medical centrifuge in medical industry, mainly used in blood separation, DNA research/immunity hematology laboratory, checkout room, laboratory, etc., is a medicine, biochemistry laboratory is immune to serum, plasma, radiation ideal products, is all kinds of hospital blood Banks, laboratory, blood stations and medical institutions and medical institutions necessary equipment.



One of the smallest trace refrigerated centrifuge table high speed in China, 7 inch touch screen, seven color atmosphere of the lantern, the operation is convenient, can match PCR8 tube, fast sedimentation and separation of DNA, RNA, proteins and viruses, and applied to the bacteria, protein precipitation, nucleic acid extraction, cell/cell component separation, environmental sample processing, clinical test sample processing, etc.





The main features

Brand new operating system, single chip microcontroller, maintenance-free large torque AC brushless frequency conversion motor direct drive, smooth operation, can achieve fast speed control;

The appearance of the upgrade, the use of 7-inch TFT-LCD true color touch large screen, with seven-color atmosphere lights, intuitive interface display, so that it can be beautiful and comfortable operation;

The silicone rubber integral sealing ring (EU RoHS 2015/863) is used to prevent aerosol from spillage and protect personal safety and laboratory safety by barrier isolation and other 'double protection'.

The use of metal shell, oxidation resistance, corrosion resistance, the use of rear austenitic 304 stainless steel to increase the centrifugal chamber, to ensure the safety of staff and laboratory instruments;

The use of integrated automatic door lock, just lightly press the door cover lock, with automatic/manual unlock;

With CFDA filing and CFDA production qualification, passed ISO 9001 (2015) certification and ISO 13485 (2016) certification;



Functional features

Imported fluorine-free refrigeration compressor unit and environmental protection refrigerant R404a, one-button cooling refrigeration function, quickly cooling to the set temperature, can maintain the set temperature in standby state;

Step centrifuge function, up to 6 step centrifuge procedures can be set, there is no need to adjust the centrifugal speed, centrifugal force, time, greatly improve the separation efficiency;

Storage user defined running centrifuge program, up to 25 groups of running centrifuge program can be set, can quickly switch running centrifuge program, default boot is the last used program;

In the running state, the parameters can be changed at any time, without stopping the machine, and the data of each operation can be automatically stored, and the centrifugal data of previous operation can be viewed;

With overspeed, overtemperature, imbalance, undervoltage, overvoltage and other automatic warning functions;



Technical Parameters:

MODEL 7116R
Max Capacity 48×1.5/2.0 ml
Max speed(r/min) 16500
MAX RCF(×g) 22500
Standard rotor 48×1.5/2.0 ml
Speed Accuracy ±50r/min
Refrigerated system Fluorine-free refrigeration compressor unit and environmentally refrigerant R404a
Temperature setting Range -20℃~40℃
Temperature Accuracy ±1℃
Time Range 1min-99h59min59s
Noise Level ≤60 dB
POWER AV220V 50Hz
SIZE L*W*H 650×350×325mm



Rotor spec:

Product NAME CAPACITY SPEED(r/min) RCF(×g)
ROTOR 12×1.5/2.0 ml 16500 19600
24×1.5/2.0 ml 15000 22500
  48×1.5/2.0 ml 13000 18750
PCR 2×8×0.2ml 15000 11030
4×8×0.2ml 13000 13180
