Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: DD5
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 10600￥
Packaging Details: 630×500×420mm
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |
DD5 Table Top Low Speed Large Capacity Centrifuge |
Rotor Capacity: |
4×500ml |
Highest Speed: |
5000min |
Aximum Relative Centrifugal Force: |
4800×g |
Operating Temperature: |
The Normal Temperature |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
65kg |
The Name Of The: |
DD5 Table Top Low Speed Large Capacity Centrifuge |
Rotor Capacity: |
4×500ml |
Highest Speed: |
5000min |
Aximum Relative Centrifugal Force: |
4800×g |
Operating Temperature: |
The Normal Temperature |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
65kg |
Hunan Hexi Instrument Equipment Co., Ltd. was established in Xiangjiang New Area in 2007. After more than ten years of development, it has become a high-tech enterprise integrating r&d, production and sales of laboratory instruments and equipment with independent intellectual property rights, independent brand and independent innovation ability.
Standing director of Laboratory Instrument Branch of Chinese Instrument Society
Standing director of Laboratory Instrument Branch of China Instrumentation Industry Association
Vice president of Laboratory Instrument Association, Chinese Association for Inspection and Quarantine
The company mainly produces various kinds of laboratory centrifuge/moisture rapid tester and vacuum centrifugal concentrator and has passed iso9001:2015 quality management system certification, ISO13485:2016 medical device quality management system certification and CE certification. Led the preparation of ASTM international standard for total solid content of natural rubber.

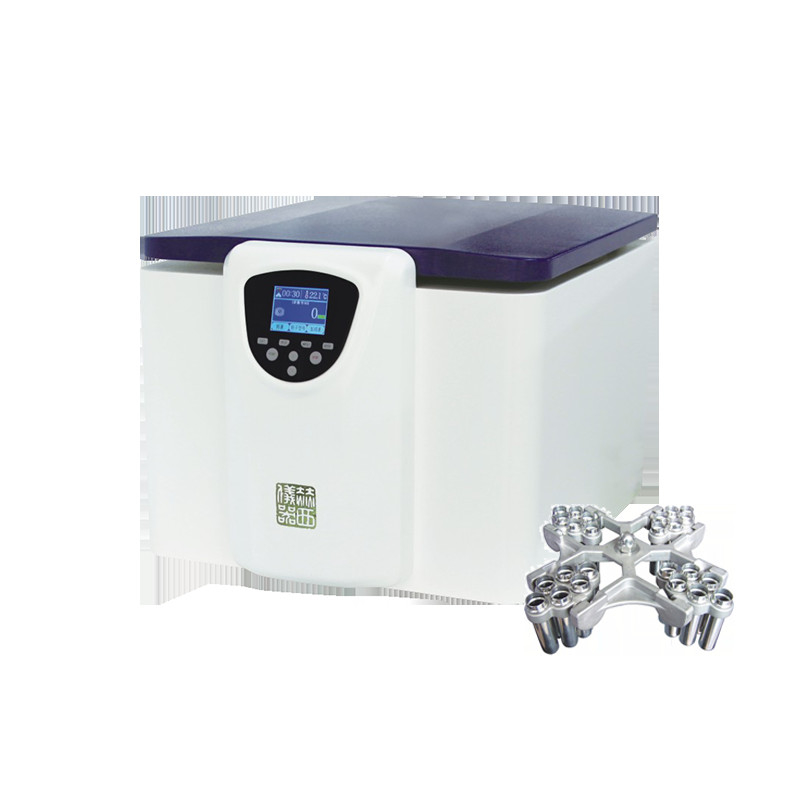

DD5 table top low speed and large capacity centrifuge is suitable for separating different liquids in biological, chemical, radiological and immunological laboratories and pharmaceutical and biological products.
DD5 desktop large capacity low speed centrifuge features:
1. Desktop large-capacity low-speed centrifuge DD5, using Single chip microcomputer and infineon drive module, with independent research and development of the control board and large torque AC brushless motor, stable operation, low noise, to provide a comfortable laboratory environment.
2. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation, safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.
3. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, no need to stop the operation interface intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
4. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.
5. Desktop large capacity low speed centrifuge DD5, rear austenitic 304 stainless steel centrifugal chamber with all steel spray shell, one punching forming steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.
6. Mute electromechanical motor door lock, easy to use, just close the door cover gently, it will trigger the door lock system, the door cover safety lock.
7.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, starting the program used last time.
8. Aero-forged aluminum rotor (Angle rotor only) and various polyamide fiber adapters are optional, which can centrifugal all kinds of MTP microporous plate, PCR plate, cell culture plate and deep hole plate.
9. Have CFDA record and CFDA production qualification, passed ISO 9001 (2015) and ISO 13485 (2016) certification.
| Technical Parameters | |
| Product Model | DD5 |
| Max Speed((r/ min) | 5000 |
| Max Rcf(×g) | 4800 |
| Max Capacity | 4×500 ml |
| Time Range | 1-99 min/Continuous/short-time centrifugation |
| Noise Level | ≤60 dB |
| POWER SUPPLYY | AC220V 50Hz |
| Speed Accuracy | ±50r/min |
| POWER | 1.8KW |
| WEIGHT | 65 Kg |
| SIZE(L×W×H) | 630×500×420 mm |
:Rotor Spec:
| Product NAME | DD5 | ||
| Angle rotor | SPEED(r/ min) | RCF(×g) | |
| Angle rotor | 12×10 ml/15ml | 5000 | 2600 |
| Swing rotor | 4×500 ml(Round cup) | 4000 | 3580 |
| Adapter | 4×250 ml/300 ml | ||
| 4×100 ml | |||
| 12×50 ml | |||
| 32×15 ml | |||
| 48×10 ml | |||
| 72×5 ml | |||
| Swing rotor | 48×5 ml Ordinary tube | 4000 | 2960 |
|
48×5 ml/2 ml (Vacuum blood collection tube) |
4000 | 2960 | |
|
76×5 ml/2 ml (Vacuum blood collection tube) |
4000 | 3080 | |
|
148×5 ml/2 ml (Vacuum blood collection tube) |
4000 | 3420 | |
| 24×10 ml/15ml | 5000 | 4620 | |
| 32×10 ml/15ml | 4000 | 2960 | |
| 8×50 ml | 4000 | 2960 | |
| 4×100 ml | 5000 | 4800 | |
| 4×250 ml flat bottom | 4000 | 2780 | |
| 4×250 ml conical bottom | 4000 | 2780 | |
| Swing micro-plate rotor | 2×2×96hole | 4000 | 2360 |
| Swing micro-plate rotor | 4×2×96hole | 4000 | 3580 |
