Home > Products > Low Speed Centrifuge Machine > 500W Small Centrifuge Machine low speed 20 program with multiple languages

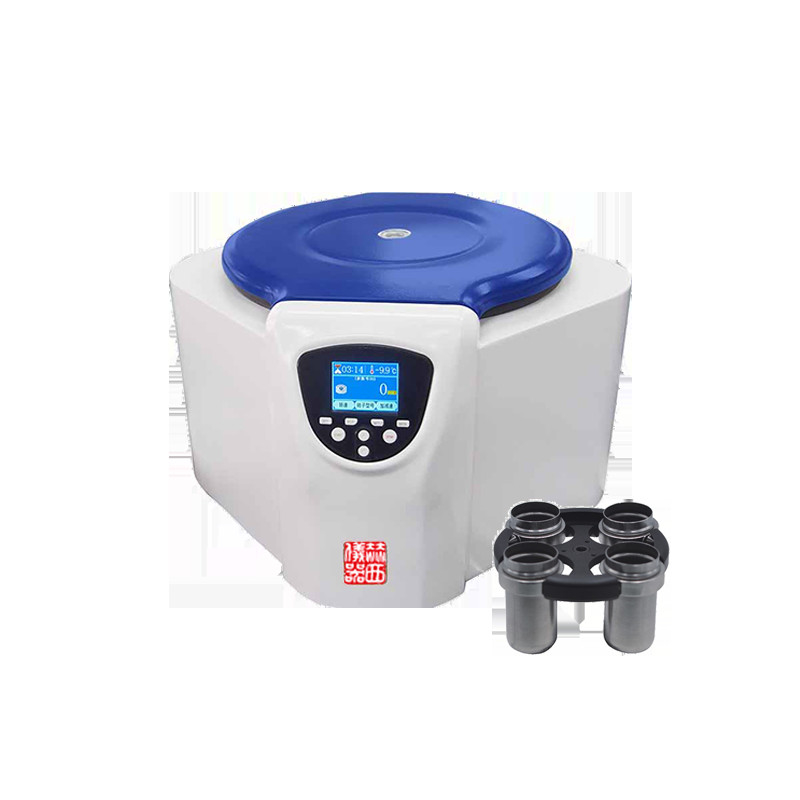

500W Small Centrifuge Machine low speed 20 program with multiple languages

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: TD5A

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 9400¥

Packaging Details: 600×540×360mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

500W Small Centrifuge Machine

,

ISO9001 Small Centrifuge Machine

,

Multiple Languages Centrifuge Low Speed

The Name Of The:
TD5A Centrifuge Table Low Speed Centrifuge
Rotor Capacity:
4×250ml
Highest Speed:
5500min
Aximum Relative Centrifugal Force:
4800×g
Operating Temperature:
The Normal Temperature
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
35kg
The Name Of The:
TD5A Centrifuge Table Low Speed Centrifuge
Rotor Capacity:
4×250ml
Highest Speed:
5500min
Aximum Relative Centrifugal Force:
4800×g
Operating Temperature:
The Normal Temperature
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
35kg
500W Small Centrifuge Machine low speed 20 program with multiple languages

Small, Low Speed Centrifuge | TD5A Centrifuge Table Low Speed Centrifuge | Imports Of Low Prices

Hunan Hexi Instrument Equipment Co., Ltd. was established in Xiangjiang New Area in 2007. After more than ten years of development, it has become a high-tech enterprise integrating r&d, production and sales of laboratory instruments and equipment with independent intellectual property rights, independent brand and independent innovation ability.





TD5A table top low speed normal temperature centrifuge details



This series centrifuge is widely used in experiments and scientific research in biology, chemistry, medicine, agriculture and forestry, food safety, blood station, clinical trials and other fields. Equipped with a variety of tube racks and adapters, it is an ideal choice for clinical testing and laboratory analysis.



TD5A table top low-speed centrifuge at room temperature



1. Adopt single chip microcomputer from Yingruien company and drive module from Infineon Company, with independently developed control board and large torque BRUShless DC motor, stable operation and low noise, provide comfortable laboratory environment.



2. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation, safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.



3. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, no need to stop the operation interface intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).



4. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.



5.TD5A table low speed normal temperature centrifuge rear austenitic 304 stainless steel centrifuge cavity with all steel sprayed shell, one punching steel front face and three layers of steel protective cover and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.



6.100V-230V wide voltage design, improve the centrifuge to the voltage adaptation range (optional).



7.TD5A table normal temperature low-speed centrifuge adopts silent electromechanical motor lock, easy to use, just close the door cover gently, the door lock system will be triggered, the door cover will be locked safely.



8.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, boot for the last used program.



9. Aero forged aluminum rotor (Angle rotor only) and various polyamide fiber adapters are optional, which can centrifugal all kinds of MTP microporous plates, PCR plates, cell culture plates and deep hole plates.



10.TD5A low-speed normal temperature centrifuge table, with CFDA record and CFDA production qualification, passed ISO 9001 (2015) certification and ISO 13485 (2016) certification.



Technical Parameters
Product Name TD5A
Max Speed(r/ min) 5500
Max Rcf(×g) 4800
Max Capacity 4×250 ml
Timer 1-99h59min/Series/Short-time centrifugation
Speed Accuracy ±50r/min
Run Program 20 program
Control and drive system high-torque DC brushless motor, microcomputer control
Total Power 500 w
Noise ≤60dB
Power supply AC220V 50Hz
Net Weight 35 Kg
Size(L×W×H) 600×540×360 mm





Matched Rotor Parameter:

Product Name Capacity TD5A
Max Speed(r/ min) Max Rcf(×g)
Angle rotor 12×10 ml/15ml 5500 3382
Swing rotor 4×250 ml 4000 2780
Adapter 8×50 ml
24×15 ml
32×10 ml
40×5 ml
Swing rotor 48×5 ml(Normal tube) 4000 2960

48×5 ml/2 ml

(Vacuum tube)

4000 2960

76×5 ml/2 ml

(Vacuum tube)

4000 3080
24×15 ml/10ml 5000 4620
32×10 ml/15ml 4000 2960
4×50 ml 5000 4600
8×50 ml 4000 2960
4×100 ml 5000 4800
Horizontal microplate rotor 2×2×96 holes 4000 2360
