Home > Products > Low Speed Centrifuge Machine > 350W Low Speed Centrifuge Machine normal temperature With warning functions

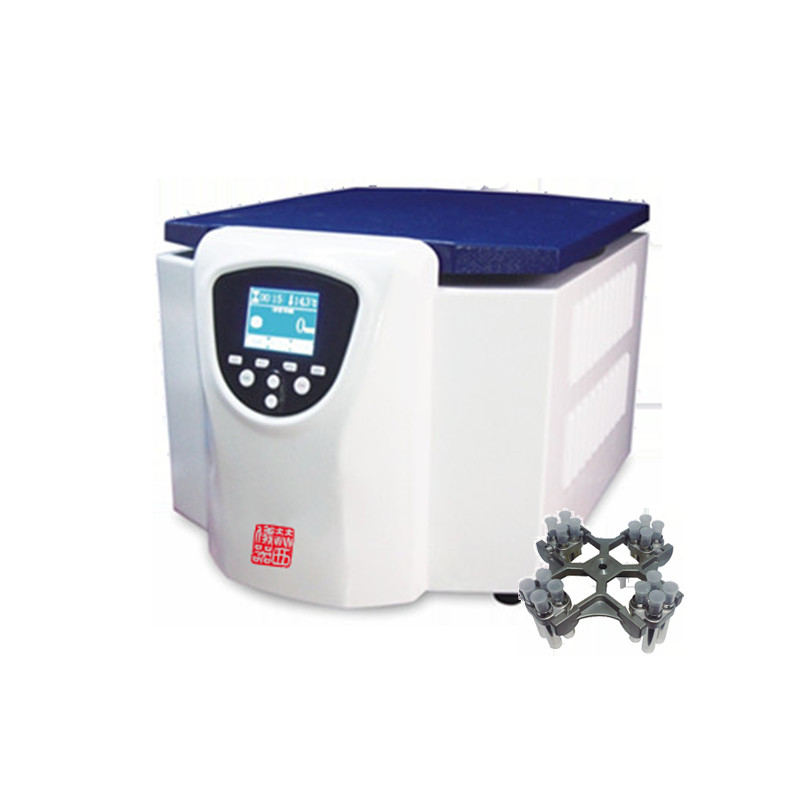

350W Low Speed Centrifuge Machine normal temperature With warning functions

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: TDZ5-WS

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 7900¥

Packaging Details: 500×400×300mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
High Light:

Warning Functions Low Speed Centrifuge Machine

,

350W Low Speed Centrifuge Machine

The Name Of The:
TDZ5-WS Centrifuge Table Low Speed Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
5000min
Aximum Relative Centrifugal Force:
4514×g
Operating Temperature:
The Normal Temperature
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
25kg
The Name Of The:
TDZ5-WS Centrifuge Table Low Speed Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
5000min
Aximum Relative Centrifugal Force:
4514×g
Operating Temperature:
The Normal Temperature
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
25kg
350W Low Speed Centrifuge Machine normal temperature With warning functions

Clinical Test Centrifuge Table Low Speed TDZ5 - WS | Room Temperature Low Speed Centrifuge Manufacturers

Desktop low speed centrifuge separation technology is a new technology developed according to the state of particles in a practical centrifugal situation. Particles of different density, size or shape are settled in centrifugal occasions of different speeds, so a roughly spherical non-uniform mixture can be separated by centrifugation. Desktop low-speed centrifuge is to further study biochemistry and separate a large number of substances. For example, collection of cells, separation of plasma, separation of DNA and protein molecules from these pre-purified preparations, and isolation of viruses and large scale escherichia coli, strict cellular components, nuclear protein particles, etc.





TDZ5-WS table top low speed normal temperature centrifuge details



This series centrifuge is widely used in experiments and scientific research in biology, chemistry, medicine, agriculture and forestry, food safety, blood station, clinical trials and other fields. Equipped with a variety of tube racks and adapters, it is an ideal choice for clinical testing and laboratory analysis.



TDZ5-WS table top low-speed centrifuge at room temperature



1. Adopt single chip microcomputer from Yingruien company and drive module from Infineon Company, with independently developed control board and large torque BRUShless DC motor, stable operation and low noise, provide comfortable laboratory environment.



2. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation, safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.



3. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, no need to stop the operation interface intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).



4. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.



5.TDZ5-WS table low speed normal temperature centrifuge rear austenitic 304 stainless steel centrifuge cavity with all steel sprayed shell, one punching steel front face and three layers of steel protective cover and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.



6.100V-230V wide voltage design, improve the centrifuge to the voltage adaptation range (optional).



7.TDZ5-WS table normal temperature low-speed centrifuge adopts silent electromechanical motor lock, easy to use, just close the door cover gently, the door lock system will be triggered, the door cover will be locked safely.



8.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, boot for the last used program.



9. Aero forged aluminum rotor (Angle rotor only) and various polyamide fiber adapters are optional, which can centrifugal all kinds of MTP microporous plates, PCR plates, cell culture plates and deep hole plates.



10.TDZ5-WS low-speed normal temperature centrifuge table, with CFDA record and CFDA production qualification, passed ISO 9001 (2015) certification and ISO 13485 (2016) certification.





Technical Parameters
Product Name TDZ5-WS
Max Speed(r/ min) 5000
Max Rcf(×g) 4514
Max Capacity 4×100 ml
Timer 1-99h59min/Series/Short-time centrifugation
Speed Accuracy ±50r/min
Run Program 20 Program
Control and drive system high-torque DC brushless motor, microcomputer control
Total Power 350 w
Noise ≤60dB
Power supply AC220V 50Hz
Net Weight 25 Kg
Size(L×W×H) 500×400×300 mm





Matched Rotor Parameter:



Product Name Capacity TDZ5-WS
Max Speed(r/ min) Max Rcf(×g)
Angle rotor 12×10 ml/15ml 5000 3120
Angle rotor 12×20 ml/15ml 4000 2600
Swing rotor 16×15 ml/10ml 4000 2764
4×50 ml 5000 4318
4×100 ml 5000 4514
Horizontal microplate rotor 2×2×96 holes 4000 2360
