Home > Products > Laboratory Centrifuge Machine > 6000rpm Laboratory Centrifuge Machine 4800×g RCF Multi Tube Frame

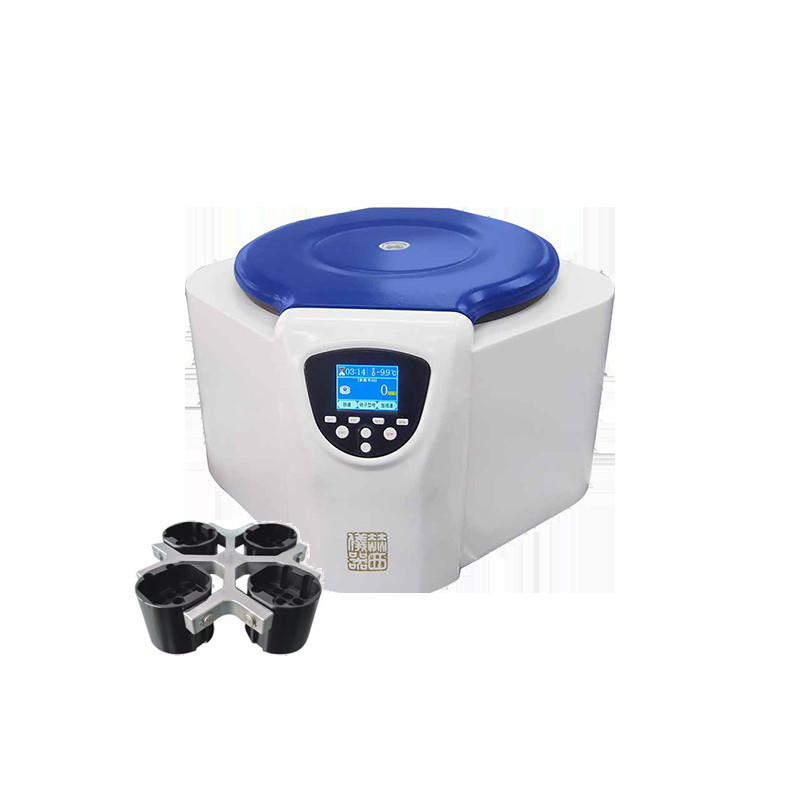

6000rpm Laboratory Centrifuge Machine 4800×g RCF Multi Tube Frame

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: TDZ6-WS

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 8500¥

Packaging Details: 600×540×360mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

6000rpm Laboratory Centrifuge Machine

,

Multi Tube Frame Laboratory Centrifuge Machine

,

4800×G RCF Centrifuge Machine For Laboratory

The Name Of The:
TDZ6-WS Table Top Low Speed Multi-tube Rack Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
6000min
Aximum Relative Centrifugal Force:
4800×g
Operating Temperature:
The Normal Temperature
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
35kg
The Name Of The:
TDZ6-WS Table Top Low Speed Multi-tube Rack Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
6000min
Aximum Relative Centrifugal Force:
4800×g
Operating Temperature:
The Normal Temperature
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
35kg
6000rpm Laboratory Centrifuge Machine 4800×g RCF Multi Tube Frame

TDZ6 - WS Multi-Tube Frame Table Low Speed Centrifuge | Laboratory, Maintenance | Laboratory Centrifuge Manufacturers

Desktop low speed centrifuge separation technology is a new technology developed according to the state of particles in a practical centrifugal situation. Particles of different density, size or shape are settled in centrifugal occasions of different speeds, so a roughly spherical non-uniform mixture can be separated by centrifugation. Desktop low-speed centrifuge is to further study biochemistry and separate a large number of substances. For example, collection of cells, separation of plasma, separation of DNA and protein molecules from these pre-purified preparations, and isolation of viruses and large scale escherichia coli, strict cellular components, nuclear protein particles, etc.



Favored by the majority of customers, hussey instrument is one of the best-selling models, equipped with a variety of pipe racks, adapters, is the ideal choice for clinical testing, laboratory analysis. Widely used in biology, chemistry, medicine, agriculture and forestry, food safety, blood stations, clinical trials and other fields of experimental and scientific research work.



TDZ6-WS table top low speed multi-tube frame centrifuge product details



Suitable for biology, chemistry, radiation immunity, medicine, pharmacy, food and environmental protection and other experimental research units, can be used for the separation and preparation of biological products and blood products.



Equipped with a variety of pipe racks, adapters, is the ideal choice for clinical testing, laboratory analysis. Widely used in biology, chemistry, medicine, agriculture and forestry, food safety, blood stations, clinical trials and other fields of experiment and scientific research work.





TDZ6-WS desktop low-speed multi-tube rack centrifuge features:



1. Adopt single chip microcomputer from Yingruien company and drive module from Infineon Company, with independently developed control board and large torque BRUShless DC motor, stable operation and low noise, provide comfortable laboratory environment.



2. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation, safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.



3. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, no need to stop the operation interface intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).



4.TDZ6-WS multi-tube frame desktop low-speed centrifuge, biosafety air tightness Angle rotor with silicone rubber integral seal ring (EU RoHS 2015/863), can avoid aerosol spillover, fully ensure the safety of staff and laboratory environment.



5. The rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching forming steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.



6.100V-230V wide voltage design, improve the centrifuge to the voltage adaptation range (optional).



7. Adopt mute electromechanical motor door lock, easy to use, just close the door cover gently, it will trigger the door lock system, the door cover is locked safely.



8.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, boot for the last used program.



9. Aero forged aluminum rotor (Angle rotor only) and polyamide fiber adapter optional, suitable for 0.2ml to 250mL (TDZ6-WS maximum support only 100mL) centrifuge tube or reagent bottle; All kinds of MTP microporous plates, PCR plates, cell culture plates and deep porous plates can be centrifuged.



10.TDZ6-WS Multi-tube frame desktop low-speed centrifuge has THE CFDA record and CFDA production qualification, and has passed the ISO 9001 (2015) certification and ISO 13485 (2016) certification.



Technical Parameters
Product Name TDZ6-WS
Max Speed(r/ min) 6000
Max Rcf(×g) 4800
Max Capacity 4×100 ml
Timer 1-99h59min/Series/Short-time centrifugation
Speed Accuracy ±50r/min
Control and drive system high-torque DC brushless motor, microcomputer control
Total Power 500w
Noise ≤60dB
Power supply AC220V 50Hz
Net Weight 35kg
Size(L×W×H) 600×540×360mm





Matched Rotor Parameter:



  Capacity Max Speed(r/ min) Max Rcf(×g)
Angle rotor 12×10 ml/15ml 6000 3740
Swing rotor 48×5 ml 4000 2960

48×5 ml/2ml

(Vacuum tube)

4000 2960

76×5 ml/2ml

(Vacuum tube)

4000 3080
16×15 ml/10ml 5000 4620
24×10 ml/15ml 4000 2960
32×10 ml/15ml 4000 2960
4×50 ml 5000 4600
8×50 ml 4000 2960
4×100 ml 5000 4800
Horizontal microplate rotor 2×2×96 holes 4000 2360
