120W 4000rpm Low Speed Centrifuges For Laboratory Suspension Sample Inspection

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: TDZ4 - WS

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 5200¥

Packaging Details: 500×470×280mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
High Light:

120W Low Speed Centrifuges

,

4000rpm Low Speed Centrifuges

,

ISO9001 Centrifuge Lab Equipment

The Name Of The:
TDZ4 - WS Centrifuge Table Low Speed Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
4000min
Aximum Relative Centrifugal Force:
2490×g
Operating Temperature:
The Normal Temperature
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
16.5kg
The Name Of The:
TDZ4 - WS Centrifuge Table Low Speed Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
4000min
Aximum Relative Centrifugal Force:
2490×g
Operating Temperature:
The Normal Temperature
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
16.5kg

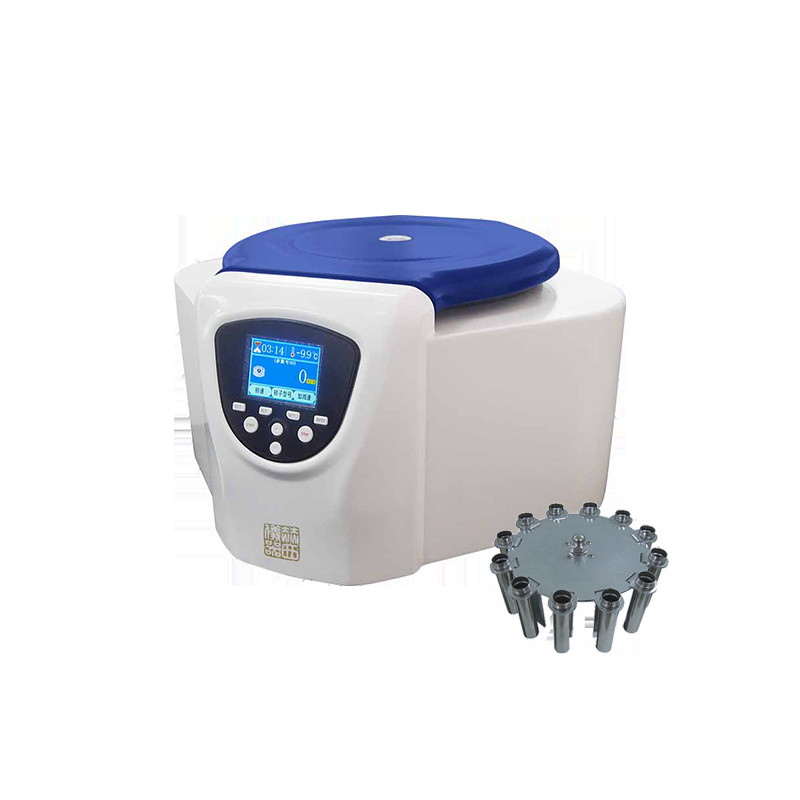

120W 4000rpm Low Speed Centrifuges For Laboratory Suspension Sample Inspection

Low Speed Centrifuge | TDZ4 - WS University Laboratory Suspension Sample Inspection Low Speed Centrifuge

Hunan Husi Instrument Equipment Co., Ltd. is a professional high-tech company integrating research and development, production, sales and maintenance of laboratory instruments and equipment. At present, the products have formed more than 40 varieties of six series of Herexi 3HRI intelligent centrifuges, including high speed refrigeration, super capacity refrigeration, low speed refrigeration, low speed centrifuge and Herexi 3HRI intelligent centrifuge. The products are widely used in military industry, research institutes, colleges and universities, central blood stations, hospitals, biological products, pharmaceutical, biochemical testing, agricultural science, environmental protection and petrochemical production and scientific research fields. Our company takes "quality is life, integrity is fundamental, service is the first, reputation is the first" as the service purpose, to develop China's scientific equipment to catch up with the world's advanced level for the goal.







TDZ4 - WS table low speed normal temperature centrifuge product details



Applicable to biochemistry, medicine, pharmacy, clinical trials, food and environmental protection and other experimental research units, is a routine equipment for the separation and preparation of suspended matter liquid. With high safety, excellent quality and high cost performance, it is a conventional equipment for the separation and preparation of suspended solids liquid, and a necessary laboratory centrifugal separation basic instrument for all kinds of laboratories, hospitals at all levels, universities and so on.







TDZ4 - WSTable top low-speed centrifuge features:





1. Adopt single chip microcomputer from Yingruien company and drive module from Infineon Company, with independently developed control board and large torque BRUShless DC motor, stable operation and low noise, provide comfortable laboratory environment.



2.TDZ4 - WS table low speed normal temperature centrifuge with overspeed, overtemperature, imbalance and other early warning functions, special combination of shock absorption device, make the motor stable operation safe and reliable, prevent sample suspension, to achieve excellent centrifugal effect.



3.100V-230V wide voltage design, improve the centrifuge to the voltage adaptation range (optional).



4. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, without stopping, the operation interface is intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).



5. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.



6. Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.



7.TDZ4 - WS desktop low-speed centrifuge adopts mute electromechanical motor lock, easy to use, just close the door cover gently, it will trigger the door lock system and lock the door cover safely.



8.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, boot for the last used program.



9.TDZ4 - WS desktop low-speed normal temperature centrifuge has THE CFDA record and CFDA production qualification, and has passed the ISO 9001 (2015) certification and ISO 13485 (2016) certification.



Technical Parameters
Product Name TDZ4-WS
Max Speed(r/ min) 4000
Max Rcf(×g) 2490
Max Capacity 4×100ml
Speed Accuracy ±50r/min
Timer 1-99h59min/Series/Short-time centrifugation
Noise ≤60dB
Power supply 120W
Control and drive system high-torque DC brushless motor, microcomputer control
Power supply AC220V 50Hz
Net Weight 16.5 Kg
Size(L×W×H) 500×470×280 mm





Matched Rotor Parameter:



Product Name



Capacity TDZ4-WS
Max Speed(r/ min) Max Rcf(×g)
Swing rotor 12×10ml/15ml 4000 2360
4×50ml 4000 2360
4×100ml 4000 2490
