Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: TDZ5
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 8100￥
Packaging Details: 600×540×360mm
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |
TDZ5 Centrifuge Table Low Speed Centrifuge |
Rotor Capacity: |
4×100ml |
Highest Speed: |
5000min |
Aximum Relative Centrifugal Force: |
4800×g |
Operating Temperature: |
The Normal Temperature |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
35kg |
The Name Of The: |
TDZ5 Centrifuge Table Low Speed Centrifuge |
Rotor Capacity: |
4×100ml |
Highest Speed: |
5000min |
Aximum Relative Centrifugal Force: |
4800×g |
Operating Temperature: |
The Normal Temperature |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
35kg |

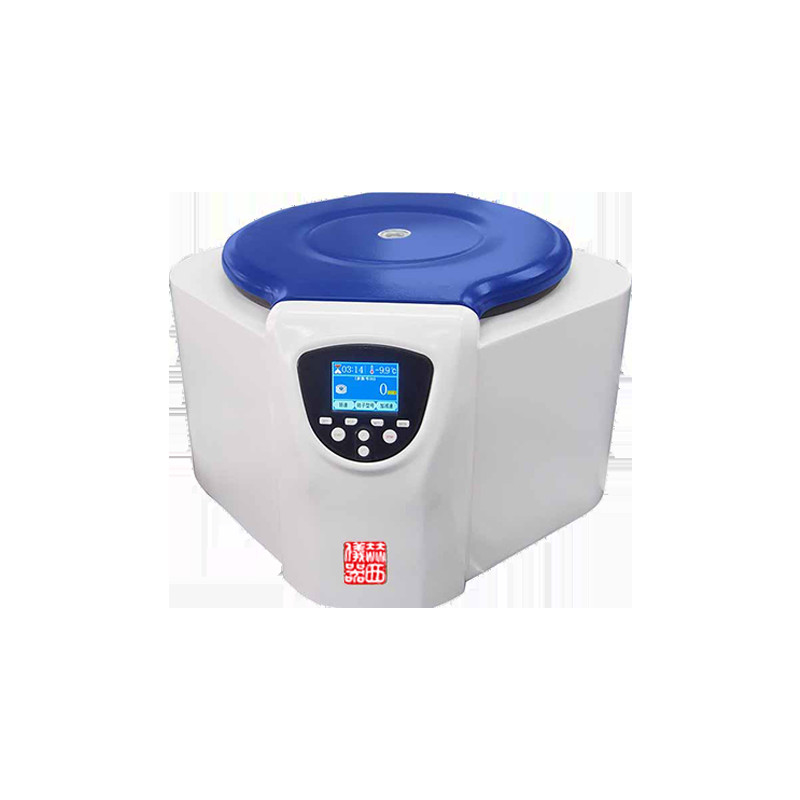

TDZ5 table top low speed normal temperature centrifuge details
This series centrifuge is widely used in experiments and scientific research in biology, chemistry, medicine, agriculture and forestry, food safety, blood station, clinical trials and other fields. Equipped with a variety of tube racks and adapters, it is an ideal choice for clinical testing and laboratory analysis.
TDZ5 table top low-speed centrifuge at room temperature
1. Adopt single chip microcomputer from Yingruien company and drive module from Infineon Company, with independently developed control board and large torque BRUShless DC motor, stable operation and low noise, provide comfortable laboratory environment.
2. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation, safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.
3. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, no need to stop the operation interface intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
4. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.
5.TDZ5 table low speed normal temperature centrifuge rear austenitic 304 stainless steel centrifuge cavity with all steel sprayed shell, one punching steel front face and three layers of steel protective cover and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.
6.100V-230V wide voltage design, improve the centrifuge to the voltage adaptation range (optional).
7.TDZ5 table normal temperature low-speed centrifuge adopts silent electromechanical motor lock, easy to use, just close the door cover gently, the door lock system will be triggered, the door cover will be locked safely.
8.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, boot for the last used program.
9. Aero forged aluminum rotor (Angle rotor only) and various polyamide fiber adapters are optional, which can centrifugal all kinds of MTP microporous plates, PCR plates, cell culture plates and deep hole plates.
10.TDZ5 low-speed normal temperature centrifuge table, with CFDA record and CFDA production qualification, passed ISO 9001 (2015) certification and ISO 13485 (2016) certification.
| Technical Parameters | |
| Product Name | TDZ5 |
| Max Speed(r/ min) | 5000 |
| Max Rcf(×g) | 4800 |
| Max Capacity | 4×100 ml |
| Timer | 1-99h59min/Series/Short-time centrifugation |
| Speed Accuracy | ±50r/min |
| Run Program | 20 Program |
| Control and drive system | high-torque DC brushless motor, microcomputer control |
| Total Power | 450 w |
| Noise | ≤60dB |
| Power supply | AC220V 50Hz |
| Net Weight | 35 Kg |
| Size(L×W×H) | 600×540×360 mm |
Matched Rotor Parameter:
| Product Name | Capacity | TDZ5 | |
| Max Speed(r/ min) | Max Rcf(×g) | ||
| Swing rotor | 48×5 ml | 4000 | 2960 |
|
48×5 ml/2 ml (Vacuum tube) |
4000 | 2960 | |
|
76×5 ml/2 ml (Vacuum tube) |
4000 | 3080 | |
| 24×15 ml/10ml | 4000 | 2960 | |
| 32×10 ml/15ml | 4000 | 2960 | |
| 4×50 ml | 5000 | 4600 | |
| 8×50 ml | 4000 | 2960 | |
| 4×100 ml | 5000 | 4800 | |
| Horizontal microplate rotor | 2×2×96 holes | 4000 | 2360 |
