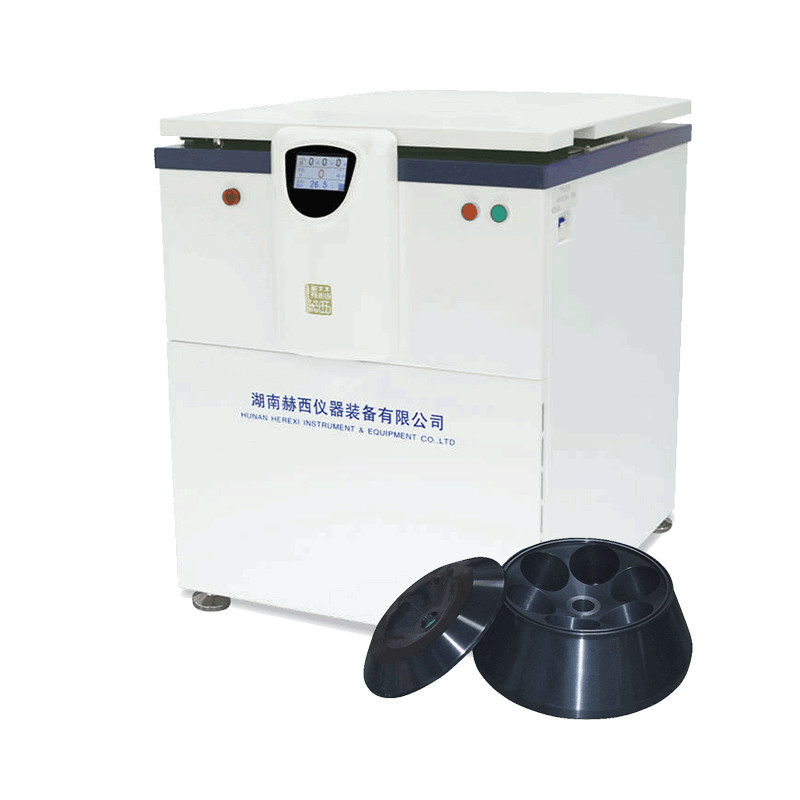

PLC Frozen High Capacity Centrifuge Low Speed Floor Model Centrifuge

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: LR10M

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 141600¥

Packaging Details: 840×730×950mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
High Light:

PLC High Capacity Centrifuge

,

ISO13485 High Capacity Centrifuge

,

Frozen Floor Model Centrifuge

The Name Of The:
LR10M Low Speed Large Capacity Refrigerated Centrifuge
Rotor Capacity:
6×1000ml
Highest Speed:
10000min
Aximum Relative Centrifugal Force:
15093×g
Operating Temperature:
-20℃~+40℃
Program:
16
Timing Range:
1min-99h59min
Weight Of The:
280kg
The Name Of The:
LR10M Low Speed Large Capacity Refrigerated Centrifuge
Rotor Capacity:
6×1000ml
Highest Speed:
10000min
Aximum Relative Centrifugal Force:
15093×g
Operating Temperature:
-20℃~+40℃
Program:
16
Timing Range:
1min-99h59min
Weight Of The:
280kg
PLC Frozen High Capacity Centrifuge Low Speed Floor Model Centrifuge

Frozen Large Capacity At Low Speed Centrifuge LR10M High-Capacity | Large-Capacity Centrifuges On Floor

Hunan Hexi Instrument Equipment Co., Ltd. was established in Xiangjiang New Area in 2007. After more than ten years of development, it has become a high-tech enterprise integrating r&d, production and sales of laboratory instruments and equipment with independent intellectual property rights, independent brand and independent innovation ability.

Standing director of Laboratory Instrument Branch of Chinese Instrument Society

Standing director of Laboratory Instrument Branch of China Instrumentation Industry Association

Vice president of Laboratory Instrument Association, Chinese Association for Inspection and Quarantine

The company mainly produces various kinds of laboratory centrifuge/moisture rapid tester and vacuum centrifugal concentrator and has passed iso9001:2015 quality management system certification, ISO13485:2016 medical device quality management system certification and CE certification. Led the preparation of ASTM international standard for total solid content of natural rubber.



Widely used in medical treatment (such as hospitals, centers for Disease control and prevention, blood centers, animal husbandry and aquatic products, radiation immunity); Research (laboratories, universities, research institutes, R&D centers); Production (such as bioengineering, biopharmaceutical, genetic engineering, biochemistry, plant extraction, blood preparation, food processing, petrochemical, milk fat separation) and other fields.



LR10M low speed large capacity refrigerated centrifuge features:



◆ Mitsubishi PLC (in line with European Electromagnetic compatibility Directive 2014/30/EU and IEC_61141-2-2007) and Wielen touch screen (in line with NEMA4 protection regulations and European CE electrical certification standards), with independent research and development of control board and large torque AC frequency conversion motor, stable operation and low noise, to provide a comfortable laboratory environment.

◆ Imported non-fluorine refrigeration compressor unit and environmental protection refrigerant R404a, with a wide range of temperature control: -20℃-+40℃, and can be set during the centrifuge operation; Have a pre

Refrigeration function, can quickly cool down to the set temperature; With standby cooling function, can maintain the set temperature in standby state; With heating and defrosting function.

◆ With overspeed, overtemperature, imbalance, undervoltage, overvoltage and other early warning functions, special combination of shock absorption device, make the motor stable operation safe and reliable, to prevent the sample suspension, to achieve optimal

Heterocentric effect.

Tft-lcd true color display screen, touch control mode, display setting parameters and running parameters at the same time, the operation interface is intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese and English).

◆ Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only strong and durable, but also ensure the safety of staff and laboratory use.

◆ Mechanical door lock, easy to operate, adapt to all kinds of bad environment, just close the door cover gently, it will trigger the door lock system, the door cover is locked safely.

◆ 10-speed acceleration and 10-speed deceleration rate control, can store 16 groups of user defined programs, can modify the control parameters of the running rotor at any time, can display the speed up and down curve, centrifugal integral curve, temperature curve.

The chassis has casters and carbon steel casters adjustment block, convenient centrifuge movement and level adjustment.

◆ With CFDA record and CFDA production qualification, passed ISO 9001 (2015) certification and ISO 13485 (2016) certification.

Technical Parameters

Model LR10M
Max Capacity 6×1000 ml
speed(r/min) 10000
Max RCF (×g) 15093
Speed Accuracy ±50r/min
Motor Frequency conversion motor
compressor Fluorine-free refrigeration compressor unit and environmentally friendly refrigerant(R404a)
Control and drive system Large torque DC brushless motor, microcomputer control
Running program 16 set
Temperature setting Range -20℃~+40℃
Temperature Accuracy ±1℃
Time Range 1-99h59min
Power 4.0 KW
Power SUPPLY AC220 V/50 Hz
Noise Level <65dB(A)
SIZE(L*W*H) 840×730×950 mm
Weight 280 Kg



Rotor Capacity MAX Speed MAX RCF
Angel Rotor 6×250 ml 10000 15093
6×500 ml 8000 11377
6×1000 ml 7000 11011
Swing rotor 6×1000 ml 4200 5167
Swing rotor 4×1000 ml 4000 4050
