Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: TL5R
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 49800￥
Packaging Details: 710×560×770mm
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |

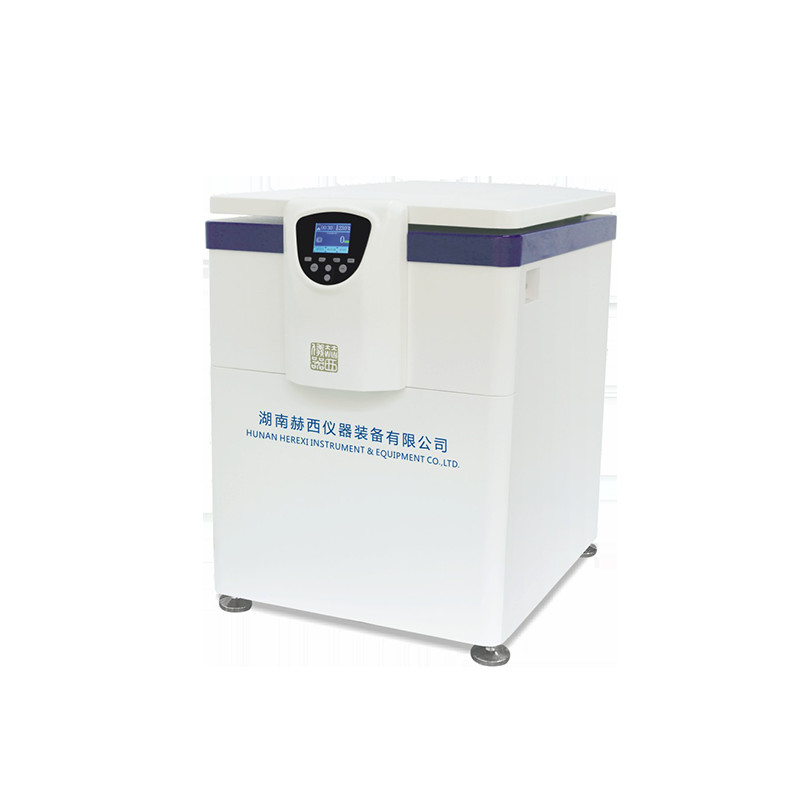

TL5R Vertical Low Speed Large Capacity Refrigerated Centrifuge |
Rotor Capacity: |
4×750ml |
Highest Speed: |
5500min |
Aximum Relative Centrifugal Force: |
4800×g |
Operating Temperature: |
-20℃～+40℃ |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
150kg |
The Name Of The: |
TL5R Vertical Low Speed Large Capacity Refrigerated Centrifuge |
Rotor Capacity: |
4×750ml |
Highest Speed: |
5500min |
Aximum Relative Centrifugal Force: |
4800×g |
Operating Temperature: |
-20℃～+40℃ |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
150kg |
TL5R vertical low-speed refrigerated centrifuge is widely used in medical treatment (such as hospitals, centers for Disease control and prevention, blood centers, animal husbandry and aquatic products, radiation immunity); Research (research institutes, R&D centers, laboratories, universities); Production (such as bioengineering, biopharmaceutical, genetic engineering, biochemistry, plant extraction, blood preparation, food processing, petrochemical, milk fat separation) and other fields.
TL5R vertical low speed refrigerated centrifuge features:
1. Adopt single chip microcomputer from Yingruian company and drive module from Infineon Company, with independently developed control board and large torque AC frequency conversion motor, stable operation and low noise, providing comfortable laboratory environment.
2. Using non-fluorine refrigeration compressor unit and environmental protection refrigerant R404a, with a wide range of temperature control: -20℃-+40℃, and can be set during the operation of the centrifuge; With pre-cooling function, can quickly cool down to the set temperature; With standby cooling function, can maintain the set temperature in standby state; With heating and defrosting function.
3. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other early warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.
4. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, without stopping, the operation interface is intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
5. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.
6. Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.
7.TL5R vertical low-speed refrigerated centrifuge adopts silent electromechanical motor lock, easy to use, just close the door cover gently, it will trigger the door lock system and lock the door cover safely.
8.10-speed acceleration and 10-speed deceleration rate control, can store 20 groups of user defined programs, can modify the control parameters of the running rotor at any time.
9. The chassis has casters and carbon steel casters adjustment block, convenient centrifuge movement and level adjustment.
10. TL5R refrigerated vertical low-speed centrifuge is qualified for CFDA filing and CFDA production, and has passed ISO 9001 (2015) certification and ISO 13485 (2016) certification.
◆ Mitsubishi PLC (in line with European Electromagnetic compatibility Directive 2014/30/EU and IEC_61141-2-2007) and Wielen touch screen (in line with NEMA4 protection regulations and European CE electrical certification standards), with independent research and development of control board and large torque AC frequency conversion motor, stable operation and low noise, to provide a comfortable laboratory environment.
◆ Imported non-fluorine refrigeration compressor unit and environmental protection refrigerant R404a, with a wide range of temperature control: -20℃-+40℃, and can be set during the centrifuge operation; Have a pre
Refrigeration function, can quickly cool down to the set temperature; With standby cooling function, can maintain the set temperature in standby state; With heating and defrosting function.
◆ With overspeed, overtemperature, imbalance, undervoltage, overvoltage and other early warning functions, special combination of shock absorption device, make the motor stable operation safe and reliable, to prevent the sample suspension, to achieve optimal
Heterocentric effect.
Tft-lcd true color display screen, touch control mode, display setting parameters and running parameters at the same time, the operation interface is intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese and English).
◆ Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only strong and durable, but also ensure the safety of staff and laboratory use.
◆ Mechanical door lock, easy to operate, adapt to all kinds of bad environment, just close the door cover gently, it will trigger the door lock system, the door cover is locked safely.
◆ 10-speed acceleration and 10-speed deceleration rate control, can store 16 groups of user defined programs, can modify the control parameters of the running rotor at any time, can display the speed up and down curve, centrifugal integral curve, temperature curve.
The chassis has casters and carbon steel casters adjustment block, convenient centrifuge movement and level adjustment.
◆ With CFDA record and CFDA production qualification, passed ISO 9001 (2015) certification and ISO 13485 (2016) certification.
Technical Parameters
| Model | TL5R |
| Max capacity | Swing rotor 4×750ml |
| Max speed(r/min) | 5500 |
| Max Rcf(×g) | 4800 |
| Speed accuracy | ±50r/min |
| Cooling system | Fluorine-free refrigeration compressor unit(R404a) |
| Temperature control range | －20℃～+40℃ |
| Temperature accuracy | ±1℃ |
| Running program | 20个 |
| Control and driving system | AC converter motor, microcomputer control, direct drive |
| Total power | 2.0kw |
| Timer | 1-99h59min |
| Noise | ≤65dB |
| Rotor identification | Automatic rotor recognition |
| Net weight | 150kg |
| Size(L×W×H) | 710×560×770mm |
Matched Rotor Parameter:
| Product name | Capacity | TL5R | |
| Max speed(r/min) | Max Rcf(×g) | ||
| Angle rotor | 12×10 ml/15ml | 5500 | 3140 |
| Swing rotor | 4×750 ml | 4000 | 3520 |
| Swing rotor | 4×500 ml(round bottom cup) | 4000 | 3580 |
| Adapters | 4×250 ml/300 ml | 4000 | 3580 |
| 4×100 ml | 4000 | 3580 | |
| 12×50 ml | 4000 | 3580 | |
| 36×15 ml | 4000 | 3580 | |
| 72×10 ml | 4000 | 3580 | |
| 72×5 ml | 4000 | 3580 | |
| Swing rotor | 4x250ml(v-bottom) | 4000 | 2780 |
| 4x250ml(flat bottom) | 4000 | 2780 | |
| Swing rotor |
148×5 ml/2 ml (vacuum tube) |
4000 | 3420 |
|
48×5 ml/2 ml (vacuum tube) |
4000 | 2960 | |
|
48×5 ml (Normal tube) |
4000 | 2960 | |
|
76×5 ml/2 ml (vacuum tube) |
4000 | 3080 | |
| 24×10 ml/15ml | 4000 | 2960 | |
| 4×100 ml | 5000 | 4800 | |
| 8×50 ml | 4000 | 2960 | |
| 32×15 ml/10ml | 4000 | 2960 | |
| Horizontal microplate rotor | 2×2×96 holes | 4000 | 2360 |
| Horizontal microplate rotor | 4×2×96 holes | 4000 | 3148 |
