Home > Products > Laboratory Centrifuge Machine > Intelligent High Speed Refrigerated Centrifuge Laboratory Low Temperature Centrifuge

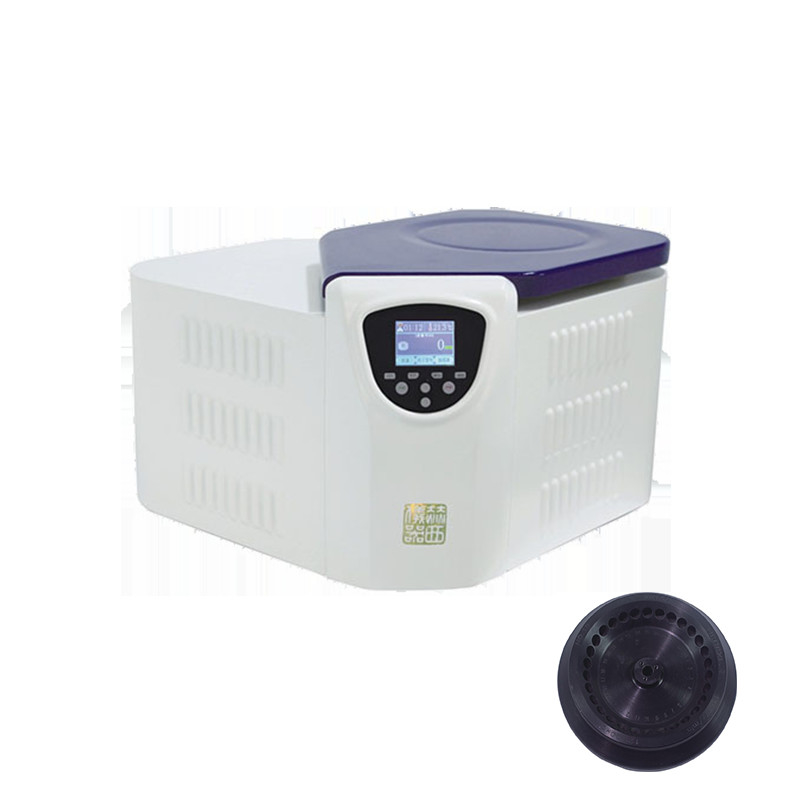

Intelligent High Speed Refrigerated Centrifuge Laboratory Low Temperature Centrifuge

Product Details

Place of Origin: Changsha, China

Brand Name: HEREXI

Certification: ISO9001、ISO13485、CE

Model Number: 3H20RI

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 46200¥

Packaging Details: 710×630×350mm

Delivery Time: 8

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
Highlight:

Intelligent High Speed Refrigerated Centrifuge

,

Laboratory High Speed Refrigerated Centrifuge

,

Refrigerated Low Temperature Centrifuge

The Name Of The:
3H20RI Intelligent High Speed Refrigerated Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
20800min
Aximum Relative Centrifugal Force:
29850×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
75kg
The Name Of The:
3H20RI Intelligent High Speed Refrigerated Centrifuge
Rotor Capacity:
4×100ml
Highest Speed:
20800min
Aximum Relative Centrifugal Force:
29850×g
Operating Temperature:
-20℃~+40℃
Program:
20
Timing Range:
1min-99h59min
Weight Of The:
75kg
Intelligent High Speed Refrigerated Centrifuge Laboratory Low Temperature Centrifuge

Laboratory Bacteria Detection3H20RI Intelligent High Speed Refrigerated Centrifuge Laboratory Low Temperature Centrifuge

Hunan Hesi Instrument equipment Co., Ltd. is a professional high-tech company integrating research, production and sales of refrigerated centrifuges, medical centrifuges, vacuum centrifuges, high speed centrifuges, low speed centrifuges, large capacity centrifuges, moisture meter and other laboratory instruments and equipment. And through ISO9001 quality system certification and CE certification, as well as ISO13485 quality system certification, centrifuge reasonable price exquisite design, novel shape, used in colleges and universities, scientific research units, biopharmaceutical, medical, petrochemical and other fields, "high-speed refrigerated centrifuge technical conditions" drafter


The speed of high-speed refrigerated centrifuge can reach more than 10000rpm, with the performance and structure of refrigerated centrifuge, high-speed refrigerated centrifuge Angle head is made of titanium alloy or aluminum alloy. The centrifugal tube is made of polyethylene hard plastic with cover. These centrifuges are mainly used to collect microorganisms, cell fragments, cells, large organelles, sulphuric acid precipitates and immune precipitates.



The 3H series can be selected with a variety of Angle rotors and horizontal rotors, up to 100 sets of custom programs, with excellent multi-purpose characteristics, is the classic product of Hussey instrument centrifuge. Application: fine bacteria, protein precipitation, nucleic acid extraction, cell/subcellular component separation, environmental sample processing.

In 2010, it won the "Independent Innovation Silver Award" issued by China Instrument industry Association.



Scope of application is very extensive medical centrifuge in medical industry, mainly used in blood separation, DNA research/immunity hematology laboratory, checkout room, laboratory, etc., is a medicine, biochemistry laboratory is immune to serum, plasma, radiation ideal products, is all kinds of hospital blood Banks, laboratory, blood stations and medical institutions and medical institutions necessary equipment.



3H20RI intelligent desktop high speed refrigerated centrifuge



1. Adopt single chip microcomputer and infineon drive module, with independent research and development control board and large torque AC/DC brushless motor, stable operation and low noise, provide a comfortable laboratory environment.



2. Using non-fluorine refrigeration compressor unit and environmental protection refrigerant R404a, with a wide range of temperature control: -20℃ -40 ℃, and can be set during the operation of the centrifuge; With pre-cooling function, can quickly cool down to the set temperature; With standby cooling function, can maintain the set temperature in standby state; With heating and defrosting function.



3.3H20RI intelligent desktop refrigerated high-speed centrifuge, with overspeed, overtemperature, imbalance, undervoltage, overvoltage and other early warning functions, three-level damping shock absorption, special combination of shock absorption device, so that the motor stable operation of safe and reliable, to prevent sample suspension, to achieve excellent centrifugal effect.



4. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, without stopping, the operation interface is intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).



5. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.



6. Rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.



7. Exquisite industrial appearance design, diamond shape novel and beautiful, more suitable for the corner, save the laboratory limited table space.



10. Adopt mute electromechanical motor door lock, easy to use, just close the door cover gently, it will trigger the door lock system, the door cover is locked safely.



11.10 speed up and 10 speed down control, can store 100 groups of user defined programs, convenient to call common programs, boot for the last used program.



12. Multi-specification aero-forged aluminum rotor (Angle rotor only) and polyamide fiber adapter are optional, suitable for 0.2ml to 100mL centrifuge tube or reagent bottle; Can centrifugal all kinds of MTP microporous plate, PCR plate, cell culture plate.



13. Have the CFDA record and CFDA production qualification, passed the ISO 9001 (2015) certification and ISO 13485 (2016) certification.



Technical Parameters
Model 3H20RI
Max Capacity 4×100 ml
Max Speed(r/ min) 20800
Max Rcf(×g) 29850
Default rotor 12×1.5/2.0 ml
Speed Accuracy ±50r/min
Cooling System Fluorine-free refrigeration compressor unit and control valve(R404a)
Temperature setting Range -20℃~40℃
Temperature Accuracy ±1℃
Running program 100SET
power 1.5 Kw
Time Range 1-99h59min
Rotor recognition AUTO
Noise Level ≤60 dB
Power supply AV220V 50Hz
weight 75 Kg
SIZE(L×W×H) 710×630×350 mm



Rotor Spec:

Product Name Capacity 3H20RI
Speed RCF
Angle rotor 12×1.5/2.0ml 20800 29850
48×0.5ml 13000 14503
18×1.5ml 16000 20606
24×1.5/2.0ml 14000 18220
30×1.5ml 12000 15294
48×1.5ml 13000 18138
10×5ml 16000 17660
8×7ml 14000 12271
12×10ml/5ml 14000 18810
8×15ml round bottom 12000 14830
8×15ml round bottom 12000 14830
12×10ml through -hole 6000 3740
6×50ml through -hole 6000 3670
6×50ml round bottom 12000 13820
6×50ml conical bottom 12000 15120
4×100ml 10000 10500
Swing rotor 12×10ml 4000 2360
4×50ml 4000 2360
4×100ml 4000 2490
Swing micro-plate rotor 2×2×48 HOLE 3000 1120
