Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: TG16MW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 6000¥
Packaging Details: 380×260×310mm
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |
TG16MW Table Top High Speed Centrifuge |
Rotor Capacity: |
12×10ml |
Highest Speed: |
16500min |
Aximum Relative Centrifugal Force: |
18780×g |
Operating Temperature: |
The Normal Temperature |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
17kg |
The Name Of The: |
TG16MW Table Top High Speed Centrifuge |
Rotor Capacity: |
12×10ml |
Highest Speed: |
16500min |
Aximum Relative Centrifugal Force: |
18780×g |
Operating Temperature: |
The Normal Temperature |
Program: |
20 |
Timing Range: |
1min-99h59min |
Weight Of The: |
17kg |
This centrifuge has exquisite design as for the machine volume is only 380*260*310mm, but centrifuge Rcf can up to 18780 xg,and centrifugal flux can up to 12*10ml. The size is less than HR/T16MM, but the capacity is larger. This item is one of the smallest high speed centrifuge.
It is widely used in experiments with small sample size, many steps, large centrifugal force and low temperature requirements. Such as: biochemistry, genetic engineering, agriculture and forestry disciplines, food hygiene, hospitals and other research units of laboratory sample separation.

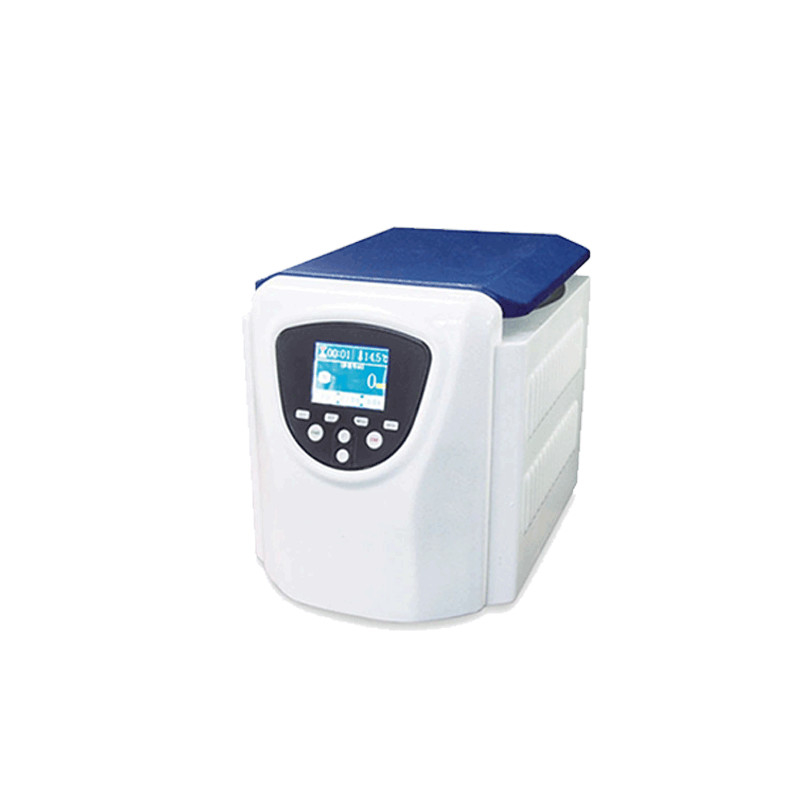

TG16MW table top high speed centrifuge
1. Adopt single chip microcomputer and infineon drive module, with independent research and development control board and large torque DC brushless motor, the fastest up and down speed of 25 seconds, stable operation and low noise, to provide a comfortable laboratory environment.
2. With overspeed, overtemperature, unbalance, undervoltage, overvoltage and other warning functions, three-level damping shock absorption, special combination of shock absorption device, make the motor stable operation, safe and reliable, prevent samples from hanging, to achieve excellent centrifugal effect.
3. Tft-lcd true color display, touch screen button and solid button dual operation mode, with centrifugal force display special key, display set parameters and running parameters, running parameters can be changed at any time, no need to stop the operation interface intuitive, simple, easy to use; The operation menu is available in multiple languages (Chinese, English, Russian, Portuguese).
4. Biosafety Airtight Angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spilt, and fully ensure the safety of staff and laboratory environment.
5. The rear austenitic 304 stainless steel centrifugal chamber with all steel sprayed shell, one punching forming steel front face and three layers of steel protective sleeve and other security devices, not only durable, but also to ensure the safety of staff and laboratory use.
6.100V-230V wide voltage design, improve the centrifuge to the voltage adaptation range (optional).
7. Compact and multi-purpose high speed centrifuge, saving laboratory limited table space.
8.TG16MW bench high speed centrifuge adopts mute electromechanical motor lock, easy to use, just close the door cover gently, the door lock system will be triggered, the door cover will be locked safely.
9.10 speed up and 10 speed down control, can store 20 groups of user defined programs, convenient to call common programs, boot for the last used program.
10. Multi-specification aviation forged aluminum rotor, suitable for 1.5mL to 10mL centrifugal tube.
11.TG16MW bench high speed centrifuge has the CFDA record and CFDA production qualification, and has passed the ISO 9001 (2015) certification and ISO 13485 (2016) certification.
Technical Parameters | |
Model Name | TG16MW |
Max Speed(r/ min) | 16500 |
Max Rcf(×g) | 18780 |
Max Capacity | 12×10 ml |
Timer | 1-99h59min |
Run Program | 20 sets |
Control and drive system | AC converter motor,microcomputer control |
Total Power | 350 w |
Noise | ≤60dB |
Power supply | AC220V 50Hz |
Net Weight | 17 Kg |
Size(L×W×H) | 380×260×310mm |
Matched Rotor Parameter:
Product name | Capacity | Max speed(r/min) | Max Rcf(×g) |
Angle rotor | 12×1.5/2.0 ml | 16500 | 18780 |
24×1.5/2.0 ml | 14000 | 18220 | |
10×5 ml | 14000 | 13520 | |
8×7 ml | 14000 | 12271 | |
12×10 ml/5ml | 12000 | 13400 |
