Product Details
Place of Origin: Changsha, China
Brand Name: HEREXI
Certification: ISO9001、ISO13485、CE
Model Number: 7116R
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 39800￥
Packaging Details: 650×350×325mm
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
The Name Of The: |
7116R Micro High Speed Refrigerated Centrifuge |
Rotor Capacity: |
48×1.5ml |
Highest Speed: |
16500min |
Aximum Relative Centrifugal Force: |
22500×g |
Operating Temperature: |
-20℃～+40℃ |
Program: |
20 |
Timing Range: |
1min-99h59min59s |
Weight Of The: |
48.5kg |
The Name Of The: |
7116R Micro High Speed Refrigerated Centrifuge |
Rotor Capacity: |
48×1.5ml |
Highest Speed: |
16500min |
Aximum Relative Centrifugal Force: |
22500×g |
Operating Temperature: |
-20℃～+40℃ |
Program: |
20 |
Timing Range: |
1min-99h59min59s |
Weight Of The: |
48.5kg |
HEREXI mainly produces high speed refrigerated centrifuge, super capacity refrigerated centrifuge, low speed refrigerated centrifuge, normal temperature centrifuge, crude oil moisture measurement centrifuge, vacuum centrifuge concentrator, 3H series intelligent centrifuge and latex moisture fast measuring instrument, and takes the lead in the industry through ISO13485: 2016 Medical device Quality management system certification, ISO9001:2015 quality management system certification and CE certification.

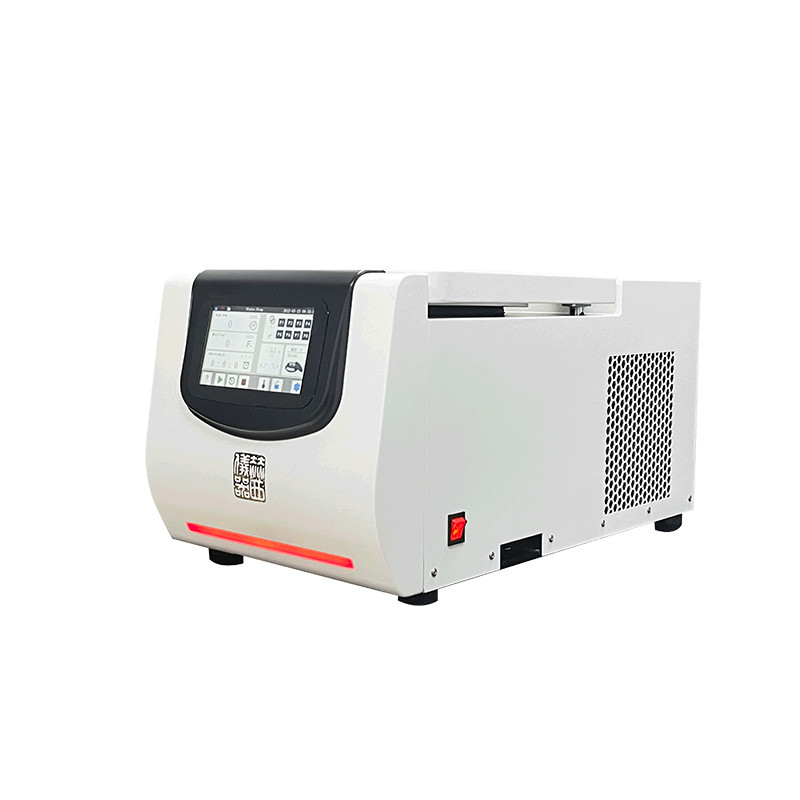

One of the smallest trace refrigerated centrifuge table high speed in China, 7 inch touch screen, seven color atmosphere of the lantern, the operation is convenient, can match PCR8 tube, fast sedimentation and separation of DNA, RNA, proteins and viruses, and applied to the bacteria, protein precipitation, nucleic acid extraction, cell/cell component separation, environmental sample processing, clinical test sample processing, etc.
The main features
Brand new operating system, single chip microcontroller, maintenance-free large torque AC brushless frequency conversion motor direct drive, smooth operation, can achieve fast speed control;
The appearance of the upgrade, the use of 7-inch TFT-LCD true color touch large screen, with seven-color atmosphere lights, intuitive interface display, so that it can be beautiful and comfortable operation;
The silicone rubber integral sealing ring (EU RoHS 2015/863) is used to prevent aerosol from spillage and protect personal safety and laboratory safety by barrier isolation and other 'double protection'.
The use of metal shell, oxidation resistance, corrosion resistance, the use of rear austenitic 304 stainless steel to increase the centrifugal chamber, to ensure the safety of staff and laboratory instruments;
The use of integrated automatic door lock, just lightly press the door cover lock, with automatic/manual unlock;
With CFDA filing and CFDA production qualification, passed ISO 9001 (2015) certification and ISO 13485 (2016) certification;
Functional features
Imported fluorine-free refrigeration compressor unit and environmental protection refrigerant R404a, one-button cooling refrigeration function, quickly cooling to the set temperature, can maintain the set temperature in standby state;
Step centrifuge function, up to 6 step centrifuge procedures can be set, there is no need to adjust the centrifugal speed, centrifugal force, time, greatly improve the separation efficiency;
Storage user defined running centrifuge program, up to 25 groups of running centrifuge program can be set, can quickly switch running centrifuge program, default boot is the last used program;
In the running state, the parameters can be changed at any time, without stopping the machine, and the data of each operation can be automatically stored, and the centrifugal data of previous operation can be viewed;
With overspeed, overtemperature, imbalance, undervoltage, overvoltage and other automatic warning functions;
|
Technical Parameters: |
|
| MODEL | 7116R |
| Max Capacity | 48×1.5/2.0 ml |
| Max speed(r/min) | 16500 |
| MAX RCF(×g) | 22500 |
| Standard rotor | 48×1.5/2.0 ml |
| Speed Accuracy | ±50r/min |
| Refrigerated system | Fluorine-free refrigeration compressor unit and environmentally refrigerant R404a |
| Temperature setting Range | －20℃～40℃ |
| Temperature Accuracy | ±1℃ |
| Time Range | 1min-99h59min59s |
| Noise Level | ≤60 dB |
| POWER | AV220V 50Hz |
| SIZE L*W*H | 650×350×325mm |
Rotor spec:
| Product NAME | CAPACITY | SPEED(r/min) | RCF(×g) |
| ROTOR | 12×1.5/2.0 ml | 16500 | 19600 |
| 24×1.5/2.0 ml | 15000 | 22500 | |
| 48×1.5/2.0 ml | 13000 | 18750 | |
| PCR | 2×8×0.2ml | 15000 | 11030 |
| 4×8×0.2ml | 13000 | 13180 |
